Ford 6600 Row-Crop Tractor Specifications (Brazil Model, 1976–1984)
Built at Ford’s São Bernardo do Campo factory in Brazil, this version of the 6600 differs slightly from North American models, particularly in configuration and available features.
Designed for row-crop fields, transport work, and general farm use, the Ford 6600 combines a 4.2-liter Ford diesel engine, strong hydraulics, and a reliable 8-speed transmission.
Its simple mechanical layout and global parts support make it a popular choice on the used market.
1. Overview
| Item | Details |
|---|---|
| Model | Ford 6600 (Brazil) |
| Production Years | 1976–1984 |
| Main Model Years | 1976–1981 |
| Type | Row-Crop Tractor |
| Manufacturer | Ford |
| Build Location | São Bernardo do Campo, Brazil |
| Drive Type | 2WD |
| Operator Station | Open station |
| Steering | Mechanical (Power steering optional) |
2. Engine
The tractor is powered by a 4.2-liter Ford diesel engine, known for strong torque, fuel efficiency, and long-term reliability.
This engine is widely used across Ford utility and row-crop tractors, ensuring easy parts sourcing worldwide.
| Specification | Details |
|---|---|
| Engine Model | Ford diesel |
| Displacement | 4.2 L, 4-cylinder |
| Type | Liquid-cooled diesel |
| Power (Engine) | 79 hp (58.9 kW) |
| PTO Power (claimed) | 74 hp (55.2 kW) |
| Fuel Capacity | 20 gal (75.7 L) |
| Engine Speed for PTO | 540 rpm @ 1900 engine rpm |
3. Transmission
The Ford 6600 uses a simple and durable 8-speed gear transmission, suitable for fieldwork and hauling.
| Transmission | Details |
|---|---|
| Type | 8-speed manual |
| Gears | 8 forward, 2 reverse |
| Differential Lock | Mechanical rear |
| Brakes | Wet disc brakes |
4. Hydraulics & Capacity
| Category | Details |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Capacity | 14 gal (53.0 L) |
| Pressure | 2,646 psi (182.4 bar) |
| Pump Flow | 9.7 gpm (36.7 L/min) |
| Valves | 1 or more (depending on configuration) |
Hitch System
| Specification | Details |
|---|---|
| Rear Hitch Type | Category II |
| Control | Position & draft control |
| Rear Lift Capacity (at 24”) | 4,138 lbs (1,876 kg) |
5. PTO (Power Take-Off)
| Specification | Details |
|---|---|
| Rear PTO | Independent |
| PTO Type | 540 rpm (1.375-inch shaft) |
| Engine RPM for PTO | 1900 rpm |
6. Dimensions & Tires
| Category | Value |
|---|---|
| Wheelbase | 87.4 in (221 cm) |
| Weight | 5,472 lbs (2,482 kg) |
| Front Tire | 7.50×16 |
| Rear Tire | 13.6/12×38 |
7. Electrical System
| Item | Details |
|---|---|
| Charging System | Alternator |
| Charging Output | 27 amps |
| Battery Voltage | 12 V |
| Battery Capacity | 80 Ah |

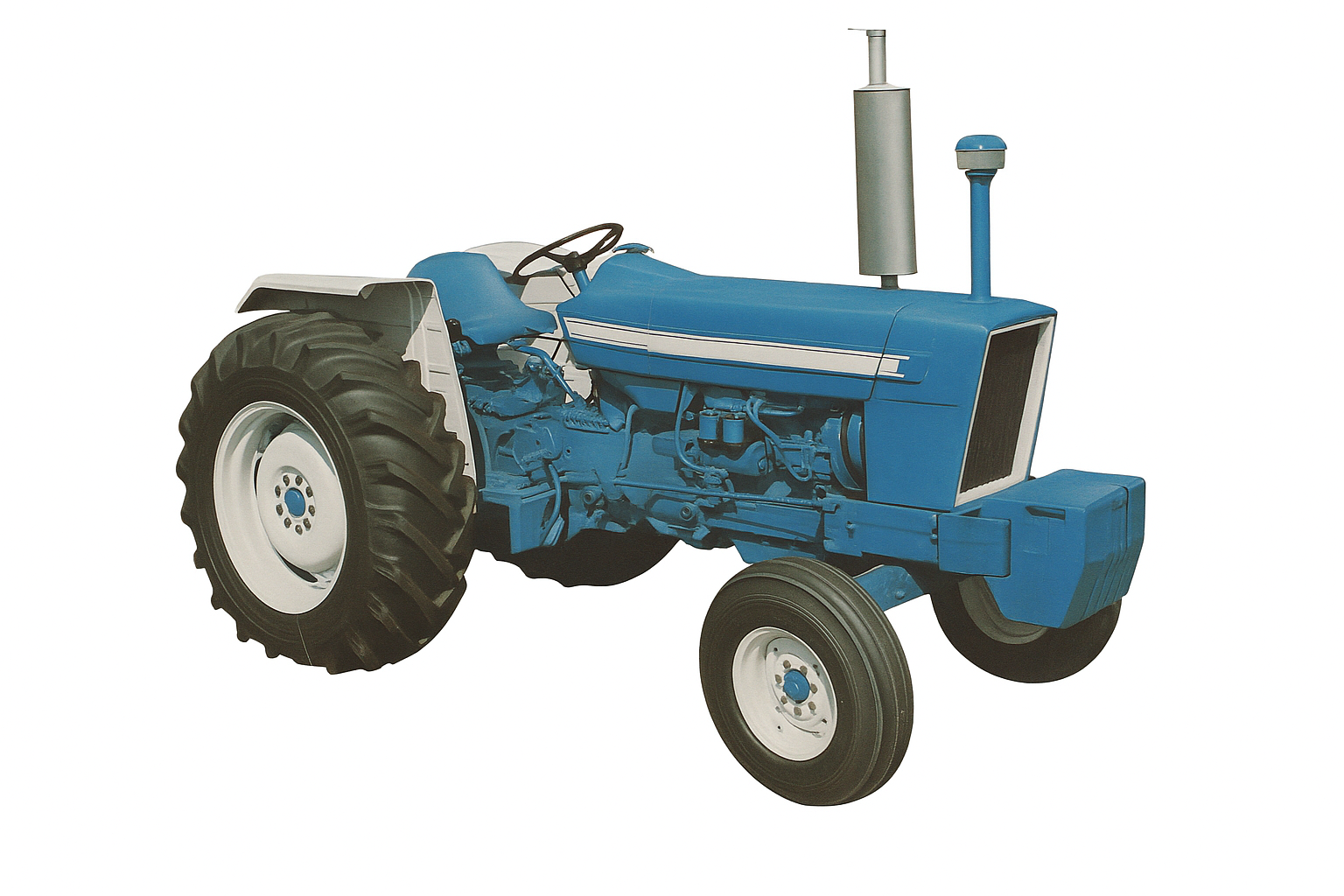

8. Photos
Summary
The Brazil-built Ford 6600 is a strong, reliable row-crop tractor favored for:
-
A durable 4.2L diesel engine
-
Simple 8-speed transmission
-
Strong hydraulics with 4,138 lbs lift capacity
-
Efficient 74 hp PTO performance
-
Easily sourced global parts
-
Lightweight but powerful 2WD row-crop configuration
Its excellent balance of power and simplicity makes it an ideal machine for farmers in Africa, South America, Asia, and other global regions seeking dependable used tractors.
