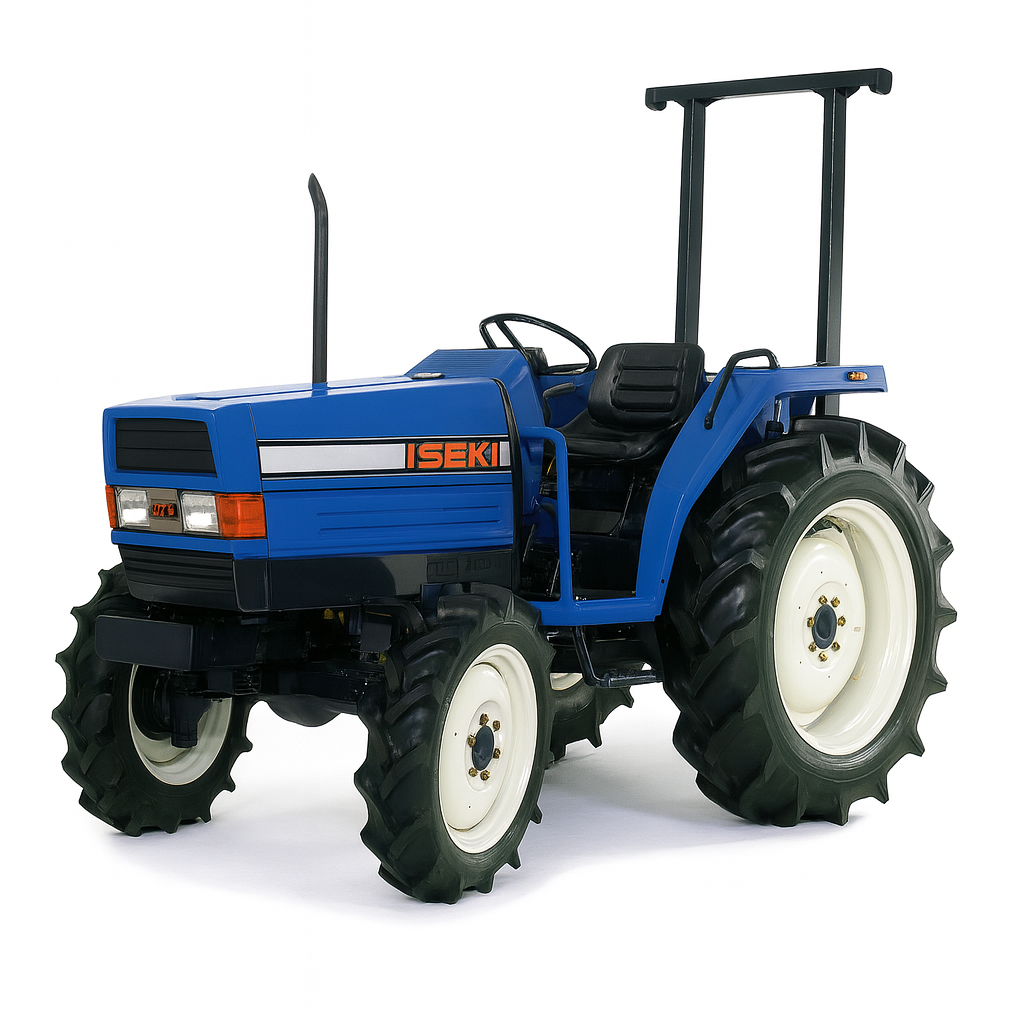

The Iseki TA545 is a 45HP compact utility tractor produced between 1993 and 1999 as part of Iseki’s respected TA500 Series.
Because this series is known for durability, smooth operation, and strong engine performance, many global buyers compare the TA545 with Used Kubota Tractor models when searching for reliable Japanese farm machinery.
Furthermore, the TA545 delivers excellent hydraulic power, stable handling, and efficient fuel consumption, which makes it ideal for tillage, loader work, plantation operations, and light construction tasks.
Iseki TA545 Overview Table
| Item | Details |
|---|---|
| Model | Iseki TA545 |
| Series | TA500 Series |
| Production Years | 1993–1999 |
| Type | Compact Utility Tractor |
| Manufacturer | Iseki |
| Built In | Japan |
| Engine Power | 45 HP (33.6 kW) |
| Drive System | 2WD / 4WD |
| Steering | Power Steering |
| ROPS | Two-post folding ROPS (Cab optional) |
Engine
The TA545 is powered by an Isuzu 2.5L 4-cylinder diesel engine, well known for its strong torque, clean emissions, and long service life.
Because the engine offers stable performance under heavy load, many farmers choose the TA545 when upgrading from smaller used Kubota tractors.
Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Isuzu |
| Engine Model | 4-cylinder diesel |
| Displacement | 2.5 L |
| Horsepower | 45 HP (33.6 kW) |
| Fuel Tank Capacity | 13.5 gal (51.1 L) |
| Cooling | Liquid-cooled |
| PTO Type | Independent PTO |
| PTO Speeds | 540 / 1000 rpm |
| PTO Clutch | Electro-hydraulic |
Transmission
The TA545 uses a 16-speed shuttle transmission, which allows fast directional changes and helps operators maintain smooth workflow during loader operation and field preparation.
Additionally, the wet disc braking system increases safety under heavy towing or downhill driving.
Transmission Specifications
| Item | Specification |
|---|---|
| Type | Shuttle Transmission |
| Speeds | 16 forward / 16 reverse |
| Brakes | Mechanical wet disc |
| Drive | 2WD or 4WD |
Hydraulics & Hitch
Because the TA545 offers strong hydraulic pressure and high total flow, it supports demanding rear implements such as rotavators, plows, sprayers, and trailers.
Moreover, its Category II rear hitch gives excellent lift performance.
Hydraulic Specifications
| Item | Specification |
|---|---|
| Hydraulic Pressure | 2400 psi (165.5 bar) |
| Total Hydraulic Flow | 8.4 gpm (31.8 L/min) |
| Steering Flow | 6 gpm (22.7 L/min) |
3-Point Hitch Specifications
| Item | Specification |
|---|---|
| Hitch Type | Category II |
| Rear Lift Capacity | 4,189 lbs (1,900 kg) |
Dimensions & Tires
The Iseki TA545 offers excellent stability due to its long wheelbase and balanced weight distribution.
Furthermore, the higher rear tire size provides stronger traction, especially during field tilling.
Dimensions
| Item | Specification |
|---|---|
| Wheelbase | 77.6 in (197 cm) |
| Operating Weight | 3,880 lbs (1,759 kg) |
Tires
| Position | Size |
|---|---|
| Front Tire | 7.5×16 |
| Rear Tire (2WD) | 14.9×28 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Amps | 45 A |
| Battery Voltage | 12 V |
| Battery Capacity | 110 Ah |
Why Global Buyers Choose the Iseki TA545
Even today, the TA545 remains one of the most trusted Japanese tractors for farmers worldwide because:
-
It delivers high 45HP power with efficient fuel consumption.
-
The Isuzu 2.5L engine is durable and easy to maintain.
-
Hydraulic performance is strong enough for heavy implements.
-
Parts availability is excellent due to long production support in Japan.
-
Compared with many Used Kubota Tractor models, it offers greater lift capacity and strong cost value.
Consequently, the TA545 is perfect for small farms, commercial farms, and mixed-use operations in Africa, Asia, South America, and the Pacific.
