Ford 5610 Tractor Specifications & Complete Model Guide (1982–1993)
The Ford 5610, part of the 10 Series, was manufactured from 1982 to 1993 and became one of Ford’s most trusted utility tractors worldwide. With its durable 4.2L diesel engine, multiple transmission choices, strong PTO performance, and reliable hydraulics, the 5610 is still widely used in agriculture today.
Its versatility makes it suitable for plowing, tillage, seeding, transport, and loader work—making it a highly valued model in the international used tractor market.
Overview
| Item | Details |
|---|---|
| Model | Ford 5610 |
| Production Years | 1982–1993 |
| Series | 10 Series |
| Type | Utility Tractor |
| Manufacturer | Ford |
| Original Price (1993) | USD $24,500 |
| Variants | 5610 Series II (1986–1993), 5610S (economy model) |
Engine
The Ford 5610 is equipped with a durable 4.2L diesel engine, delivering strong low-end torque and long service life.
| Item | Details |
|---|---|
| Engine Model | Ford 4.2L Diesel |
| Type | 4-cylinder, liquid-cooled diesel |
| Displacement | 4.2 L (4,200 cc) |
| Gross Engine Power | 72 hp (53.7 kW) |
| Rated Engine Power | 68.5 hp (51.1 kW) |
| PTO Power (claimed) | 62 hp (46.2 kW) |
| Fuel Capacity | 21 gal (79.5 L) |
| Hydraulic Capacity | 15 gal (56.8 L) |
| PTO RPM | 540 @ 1902 rpm / 1000 @ 1902 rpm |
Tested Performance (Nebraska Test)
| Test Item | Result |
|---|---|
| Drawbar Power (tested) | 53.43 hp |
| PTO Power (tested) | 62.57 hp |
Transmission Options
| Transmission Type | Speeds | Notes |
|---|---|---|
| 8-Speed | 8F / 2R | Simple and durable |
| 8-Speed Synchromesh | 8F / 2R | Smooth shifting |
| 16-Speed Partial Power Shift | 16F / 4R | On-the-go range shifting |
| 16-Speed Synchromesh Power Shift | 16F / 4R | Best for heavy field work & transport |
Mechanical Features
| Item | Details |
|---|---|
| Drive | 2WD or 4WD |
| Differential Lock | Mechanical rear |
| Steering | Power steering |
| Brakes | Mechanical wet disc |
| Operator Platform | 2-post fixed ROPS; cab optional with A/C |
Hydraulics
| Item | Series I | Series II |
|---|---|---|
| Hydraulic Type | Open center | Open center |
| Hydraulic Capacity | 15 gal | 15 gal |
| Pump Flow | 9.7 gpm (36.7 L/min) | 18.2 gpm (68.9 L/min) |
| Steering Flow | 3.6 gpm | 3.6 gpm |
| Max Pressure | 2500 psi (172 bar) | 2500 psi (172 bar) |
| Valves | 1 | 1 |
3-Point Hitch (Rear Hitch)
| Item | Series I | Series II |
|---|---|---|
| Hitch Type | Category II/I | Category II/I |
| Control | Position & top-link draft control | Same |
| Lift Capacity (24″) | 3120 lbs (1415 kg) | 4040 lbs (1832 kg) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| PTO Type | 540 (standard) / 540 & 1000 optional |
| PTO RPM | 540 @ 1902 rpm / 1000 @ 1902 rpm |
Dimensions & Tires
| Item | 2WD | 4WD |
|---|---|---|
| Wheelbase | 87.5 in (222 cm) | 88.8 in (225 cm) |
| Item | Details |
|---|---|
| Weight | 5695–6300 lbs |
| Front Tire | 7.50–16 |
| Rear Tire | 16.9–30 |
Electrical System
| Item | Series I | Series II |
|---|---|---|
| Charging Output | 32 amps | 51 amps (ROPS) / 75 amps (Cab) |
| Battery | 12V, 128 Ah | 12V, 128 Ah |
Attachments
| Attachment | Notes |
|---|---|
| Front-End Loader | Suitable for heavy loading & material handling |

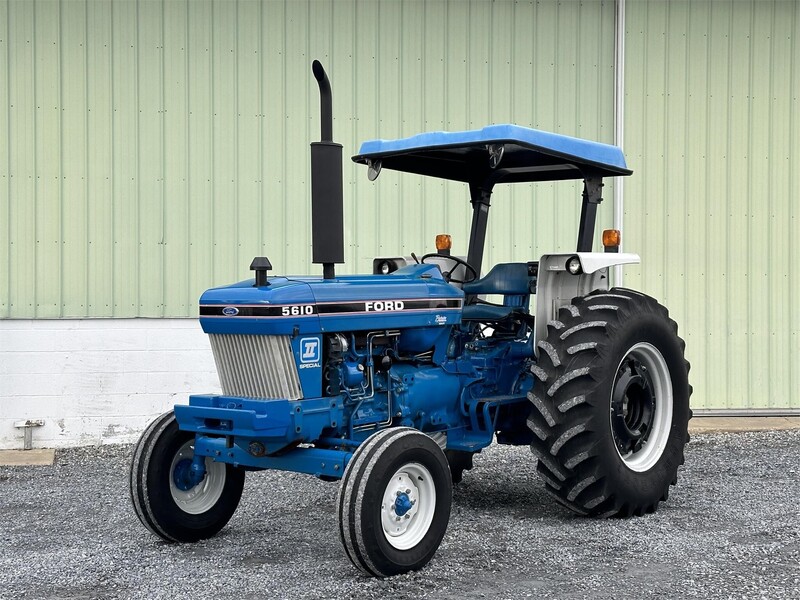

Photos
Conclusion
The Ford 5610 is a proven and reliable utility tractor that continues to serve farmers around the world. With its 4.2L engine, multiple transmission options, strong hydraulics, and excellent PTO power, it is ideal for both light and heavy agricultural operations.
