Ford 5600 (1982–1984) Tractor Specifications & Model Guide
The Ford 5600 (Brazilian production) model was manufactured from 1982 to 1984 in the São Bernardo do Campo plant. This version differs slightly from North American and European Ford 5600 models, offering a strong 4.2L Ford diesel engine, mechanical simplicity, and reliable PTO output suitable for row-crop and general farm work.
Below is a complete breakdown of the model’s features for international buyers looking for dependable used tractors.
Overview
| Item | Details |
|---|---|
| Model | Ford 5600 (Brazil) |
| Production Years | 1982 – 1984 |
| Category | Row-Crop Tractor |
| Series | 4600 / 5600 / 6600 |
| Engine Power | 75 hp (55.9 kW) |
| Manufacturer | Ford |
| Factory | São Bernardo do Campo, Brazil |
Engine
The Brazilian Ford 5600 is equipped with a robust 4.2L diesel engine, known for durability, smooth torque delivery, and ease of maintenance.
| Item | Details |
|---|---|
| Engine Model | Ford 4.2L Diesel |
| Type | 4-cylinder, liquid-cooled diesel |
| Displacement | 4.2 L (4,200 cc) |
| Rated Engine Power | 75 hp (55.9 kW) |
| PTO Power (claimed) | 65 hp (48.5 kW) |
| Fuel Capacity | 21.5 gal (81.4 L) |
| Hydraulic System Capacity | 14 gal (53 L) |
| PTO RPM | 540 rpm @ 1900 engine rpm |
The engine is optimized for mid-range torque, making it suitable for heavy implements such as plows, sprayers, mowers, and loaders.
Transmission
| Item | Details |
|---|---|
| Transmission Type | 8-speed gear |
| Gears | 8 Forward / 2 Reverse |
| Drive | 2WD |
| Steering | Mechanical (Power steering optional) |
| Differential Lock | Mechanical rear |
The simple 8-speed gearbox ensures easy maintenance, long service life, and dependable field performance.
Hydraulics
| Item | Details |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Capacity | 14 gal (53.0 L) |
| Pump Flow | 9.7 gpm (36.7 L/min) |
| Max Pressure | 2646 psi (182.4 bar) |
| Valves | 1 (standard) |
3-Point Hitch
| Item | Details |
|---|---|
| Hitch Type | Category II |
| Control Modes | Position & draft control |
| Lift Capacity (24 in point) | 4138 lbs (1876 kg) |
PTO (Power Take-Off)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| PTO Type | 540 rpm (1.375 spline) |
| Engine RPM for PTO | 540 @ 1900 rpm |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 87.4 in (221 cm) |
| Weight | 5710 lbs (2590 kg) |
| Front Tire | 7.50×16 |
| Rear Tire | 13.6/12×38 |
Electrical System
| Item | Details |
|---|---|
| Charging System | Alternator |
| Charging Output | 30 amps |
| Battery Voltage | 12V |
| Battery Capacity | 80 Ah |

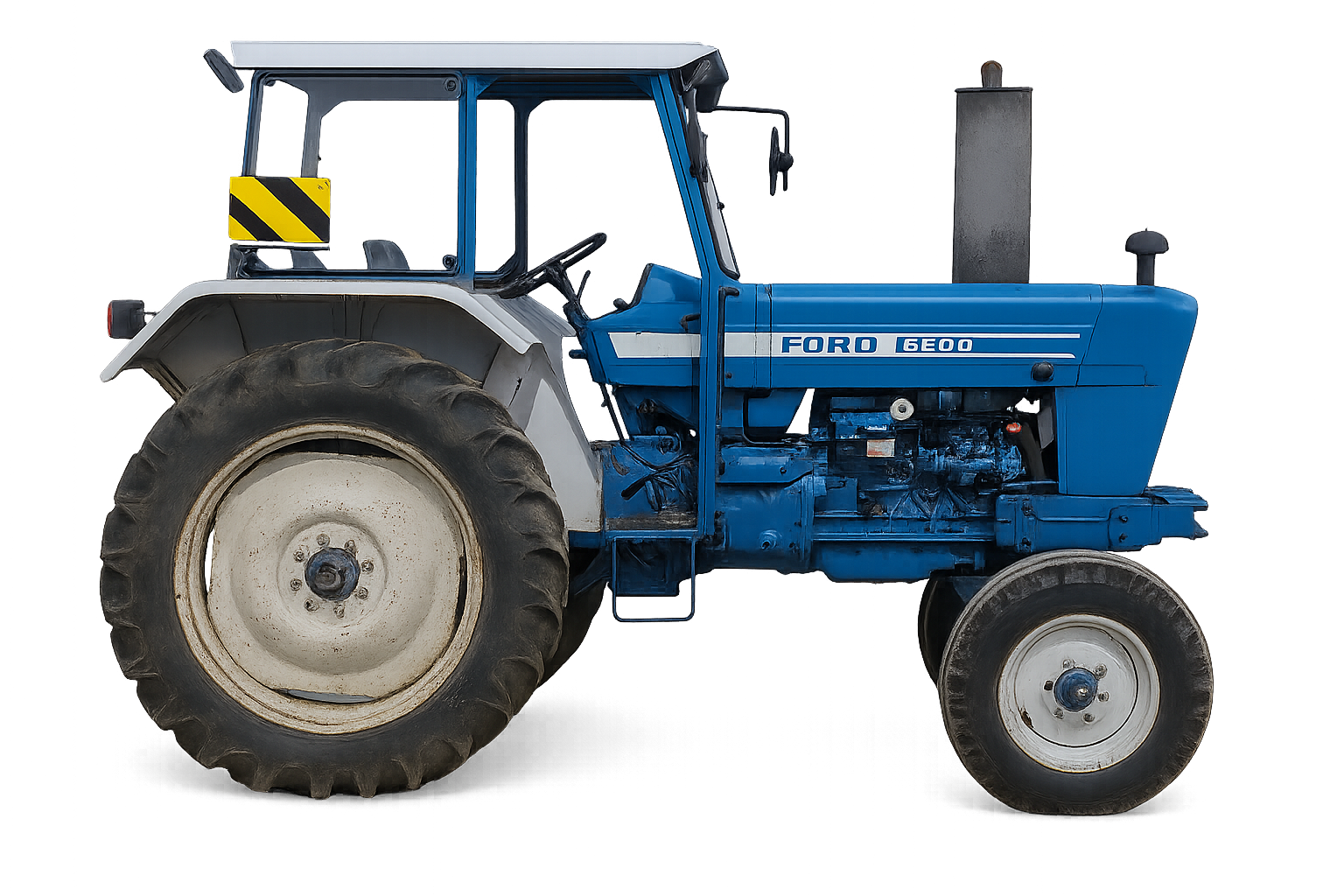

Photos
(Note: Actual images may differ because official photos are limited.)
Conclusion
The Ford 5600 (Brazil production) is a strong and dependable mid-range tractor designed for farms requiring durability, high torque, and simple mechanical systems. With its 4.2L engine, reliable hydraulics, and independent PTO, this machine is well-suited for soil preparation, field cultivation, hauling, and general agricultural tasks.
