Iseki TA417 Tractor Specifications & Model Guide
EVERY FARM TRACTOR has been exporting Japanese used tractors and farm machinery to more than 100 countries since 2006.
Here we introduce the Iseki TA417, a 40 hp class compact utility tractor from the Landleader TA7 Series, produced between 1989 and 1992.TractorData
With a robust Isuzu 2.2L diesel engine, 4WD, and multiple PTO speeds, the TA417 is well-suited for small to medium farms, orchards, livestock operations, and landscaping.
Overview
| Item | Detail |
|---|---|
| Model | Iseki TA417 |
| Series | Landleader TA7 Series TractorData |
| Tractor type | Compact utility tractor TractorData |
| Production years | 1989 – 1992 TractorData |
| Manufacturer | Iseki (Japan) TractorData |
| Engine power | 40.4 hp (30.1 kW) TractorData |
| PTO power (claimed) | 39 hp (29.1 kW) TractorData |
| Drive | Four-wheel drive (4WD) |
| ROPS / Cab | 4-post ROPS, cab optional |
| Similar model | Massey Ferguson 1160 (variant) |
The TA417 offers a good balance of power, maneuverability and durability, making it a popular choice in many export markets.
Engine
The TA417 uses a proven Isuzu industrial diesel engine, also known as the Isuzu 4JC1.TractorData+1
| Item | Detail |
|---|---|
| Engine model | Isuzu 4JC1 TractorData |
| Engine type | 4-cylinder, liquid-cooled diesel TractorData |
| Displacement | 2.2 L (approx. 2,238 cc) TractorData+1 |
| Bore × stroke | 88 × 92 mm (3.465 × 3.622 in) TractorData |
| Rated power | 40.4 hp (30.1 kW) @ 2500 rpm TractorData |
| Fuel tank capacity | 12.7 gal (48.1 L) TractorData |
| Aspiration | Naturally aspirated |
| Cooling system | Pressurized liquid cooling |
| Starter | Electric, 12 V TractorData |
Key points for buyers
-
Strong low-rpm torque is ideal for rotary tillers, loaders and heavy PTO work.
-
Simple mechanical design makes it easier to maintain in regions with limited parts supply.
Transmission & Driveline
| Item | Detail |
|---|---|
| Transmission type | Gear drive (mechanical) |
| Number of speeds | 16-speed TractorData |
| Drive system | 4WD (mechanical front drive) |
| Steering | Power steering (typical) |
| Brakes | Mechanical wet or dry (varies by spec) |
The wide range of gears allows the operator to choose suitable speeds for field work, slow PTO operations and road transport.
PTO & Hitch
| Item | Detail |
|---|---|
| Rear hitch type | JIS Category 1 |
| Rear PTO type | 540 rpm, 1⅜ in (35 mm) 6-spline shaft |
| PTO power (claimed) | 39 hp (29.1 kW) TractorData |
| PTO engine speeds | 565 / 677 / 1016 / 1270 rpm @ 2500 engine rpm |
These PTO speed options make the TA417 suitable for:
-
Rotary tillers and rotavators
-
Flail / rotary mowers
-
Sprayers and spreaders
-
Seeders and other PTO-driven implements
Dimensions & Tires
| Item | Detail |
|---|---|
| Wheelbase | 74.8 in (189 cm) TractorData |
| Overall length | 129.9 in (329 cm) TractorData |
| Overall width | 59.1 in (150 cm) TractorData |
| Overall height | 92.9 in (235 cm) TractorData |
| Operating weight | 3,814 lbs (1,730 kg) TractorData |
| Ground clearance | 14.2 in (36 cm) TractorData |
| Front tire | 8-18 (agricultural) TractorData |
| Rear tire | 13.6-28 (agricultural) TractorData |
| Rear tread | 44.9 – 59.1 in (114 – 150 cm) TractorData |
Compact overall size plus good ground clearance make this tractor easy to use in orchards, narrow fields and livestock barns while still stable with mounted implements.
Electrical
| Item | Detail |
|---|---|
| System voltage | 12 V |
| Ground | Negative |
Photos & Typical Features

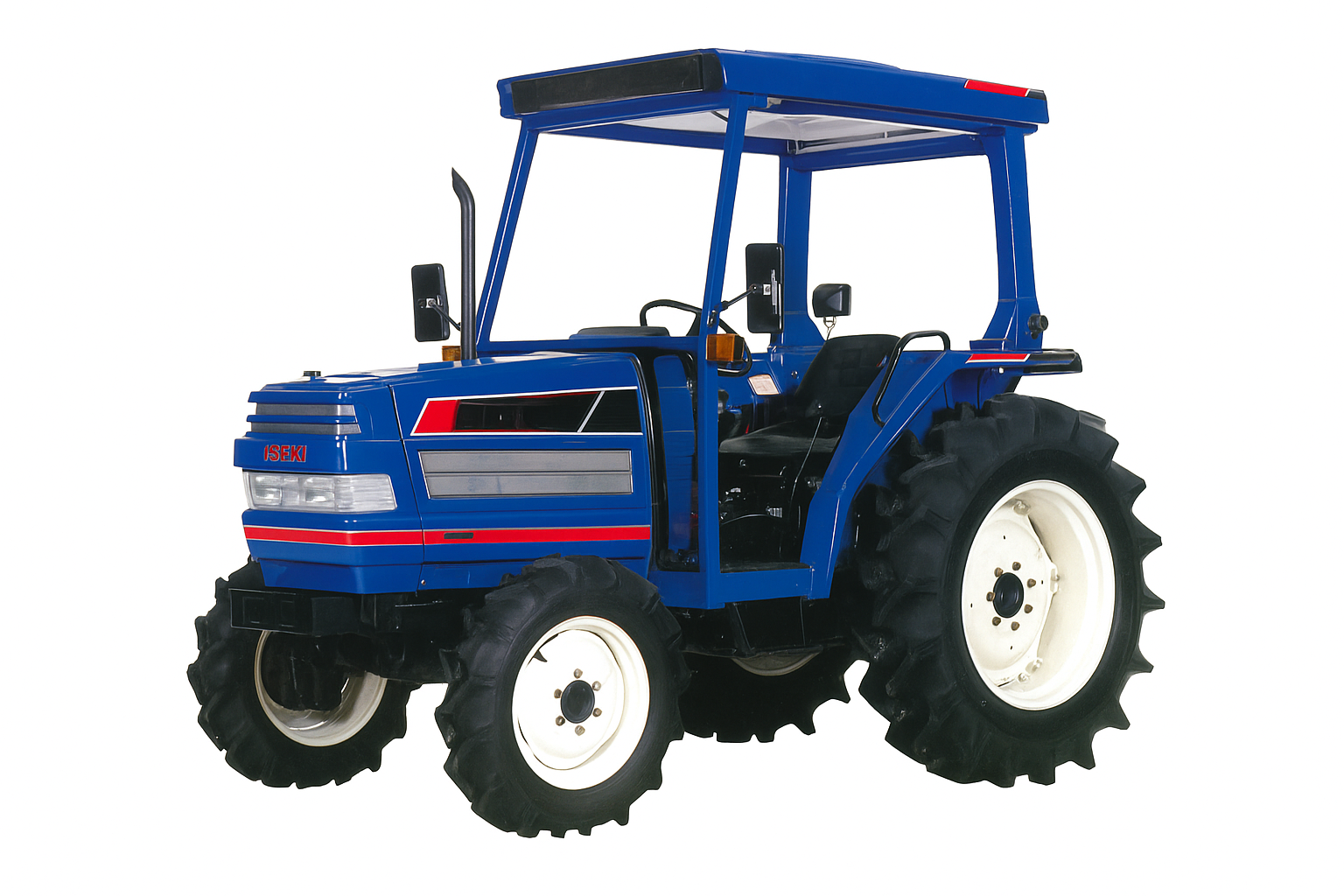

Although original data sources list no official photos, in practice many Iseki TA417 units are equipped with:
-
Simple canopy or full cabin
-
Agricultural (R1) tires
-
Rear rotary tiller or other Japanese implements
-
Power steering and 4WD as standard
EVERY FARM TRACTOR can provide actual photos of the exact TA417 unit in stock, including:
-
Exterior and cabin
-
Engine and PTO area
-
Tires and underbody
-
Control levers and dashboard
Why Choose a Used Iseki TA417 from EVERY FARM TRACTOR?
-
Proven Isuzu 4JC1 2.2L diesel – reliable and fuel-efficient.TractorData+1
-
4WD compact size – ideal for hills, muddy fields and small plots.TractorData
-
Multiple PTO speeds – flexible for many implements and crops.
-
Export experience since 2006 – we arrange shipping, documentation and support for customers worldwide.
If you are interested in the Iseki TA417 or similar Iseki Landleader models, please contact EVERY FARM TRACTOR with your country, nearest port and preferred attachments so we can prepare a quotation and unit details for you.
