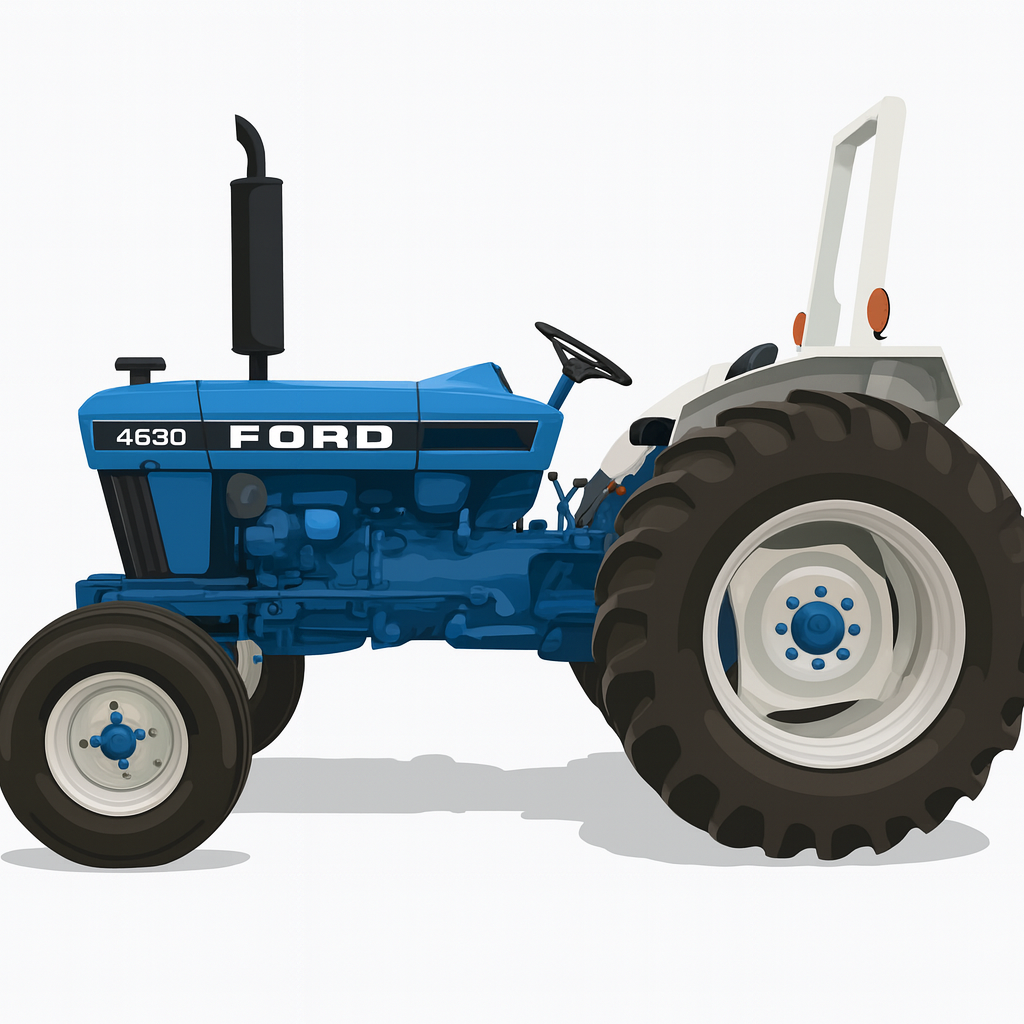

The Ford 4630 is a highly trusted utility tractor produced between 1990 and 1993 as part of Ford’s popular 30 Utility Series. Many global buyers who search for a reliable Used Kubota Tractor eventually discover the Ford 4630 thanks to its durability, strong PTO output, and smooth transmission options. Moreover, this tractor is suitable for professional farmers, contractors, orchard operations, and livestock farms that require a versatile machine with excellent fuel efficiency.
EVERY FARM TRACTOR has exported Ford tractors, including the 4630, to over 100 countries worldwide since 2006, providing stable quality, fast communication, and secure logistics for international customers.
Overview
| Item | Detail |
|---|---|
| Manufacturer | Ford |
| Series | 30 Utility Series |
| Model years | 1990 – 1993 |
| Type | Utility tractor |
| Drive options | 2WD / 4WD |
| Original price (1999) | $26,200 (2WD) / $31,700 (4WD) |
| Engine power | 60 hp (44.7 kW) |
| PTO power (claimed) | 55 hp (41.0 kW) |
| Variants | Standard, Shuttle, Higher flow hydraulics |
The Ford 4630 was designed for serious field work. However, it remains simple enough to maintain even in remote regions. Because of its balanced weight distribution and excellent torque, this model performs well in plowing, hauling, mowing, and loader work.
Engine
| Item | Detail |
|---|---|
| Engine types | Ford 3.3L 3-cyl diesel / Ford 3.1L 3-cyl diesel |
| Displacement | 3.3 L or 3.1 L |
| Cylinders | 3 |
| Rated output | 60 hp |
| Cooling | Liquid-cooled |
| Fuel tank (ROPS) | 17.3 gal (65.5 L) |
| Fuel tank (Cab) | 25.3 gal (95.8 L) |
These Ford-built diesel engines are known for strong torque and stable power delivery. Additionally, the 3-cylinder configuration offers impressive fuel efficiency. Because parts are widely available worldwide, this engine is easy to maintain compared to many modern compact tractors.
Transmission
| Item | Detail |
|---|---|
| Standard transmission | 8-speed gear |
| Optional transmission | 8-speed synchronized shuttle |
| Advanced option | 16-speed partial power shift |
| Differential lock | Rear mechanical |
| Steering | Power steering |
| Brakes | Wet disc brakes |
The 8-speed gearbox is simple and tough, while the synchronized shuttle version allows fast forward–reverse changes for loader work. Meanwhile, the partial powershift system gives more flexibility in fields with changing soil conditions.
Hydraulics
| Item | Detail |
|---|---|
| Type | Open center (closed center optional) |
| Pressure | 2500 psi (172.4 bar) |
| Valves | 1–2 (Open center) / 1–4 (Closed center) |
| Pump flow | 8.5 gpm (32.2 L/min) or 14.1 gpm optional |
| Steering flow | 3.6 gpm (13.6 L/min) |
| Rear hitch type | Category II/I |
| Hitch control | Position + top link draft sensing |
| Lift capacity | 3080 lbs (1397 kg) |
The optional high-flow hydraulic pump dramatically improves loader performance. Consequently, many farmers choose the Ford 4630 for front-end loader operations and heavy tillage work.
PTO (Power Take-Off)
| Item | Detail |
|---|---|
| Rear PTO | Independent |
| PTO type | 540 rpm |
| Engine RPM for PTO | 540 @ 1800 rpm or 540 @ 1755 rpm (Shuttle) |
| PTO (claimed) | 55 hp (41.0 kW) |
| PTO (tested) | 56.82 hp (42.4 kW) |
The PTO performance is one of the strongest features of the Ford 4630. It easily powers mowers, balers, rotary tillers, and other demanding implements.
Dimensions & Weight
| Item | Detail |
|---|---|
| 2WD Wheelbase | 84.5 in (214 cm) |
| 4WD Wheelbase | 84.1 in (213 cm) |
| Weight | 5194–6062 lbs |
| Front tires | 7.50-15 |
| Rear tires | 13.6-28 |
With its sturdy frame and stable wheelbase, the Ford 4630 performs reliably on hillsides, orchards, and uneven ground.
Electrical System
| Item | Detail |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| ROPS charging output | 55 amps (early) / 45 amps (late) |
| Cab charging output | 70 amps |
| Battery | 12V, 800 CCA |
Attachments
| Attachment Type | Details |
|---|---|
| Front-end loader | Compatible with Ford 7310 and aftermarket loaders |
| Mowers | Suitable for wide-area and municipal mowing |
| Plows & Tillers | Supports powerful 3-point attachments |
| Utility implements | Blade, trailer, sprayer, and more |
This strong compatibility range makes the Ford 4630 a practical choice for large and small farms.
Serial Numbers
Serial number decal is located inside the hood panel.
| Year | Serial Number |
|---|---|
| 1990 | BC26239 |
| 1991 | BC68791 |
| 1992 | BD05270 |
| 1993 | BD36800 |
| 1994 | BD64162 |
| 1995 | BD93484 |
| 1996 | 02658B |
| 1997 | 056083B |
| 1998 | 083357B |
| 1999 | 111612B |
Why the Ford 4630 Remains an Excellent Choice for Global Buyers
Farmers prefer the Ford 4630 because it provides stable power, simple maintenance, and strong hydraulic performance. Although many buyers start their search looking for a Used Kubota Tractor, this Ford model often becomes a better match due to its durability, PTO strength, and loader capability. Moreover, international parts support keeps running costs low.
Additionally, the 4630 performs reliably across different climates, which includes tropical regions, mountain areas, and dry farmlands.
