Iseki TA287 – Full Specifications & Model Overview
EVERY FARM TRACTOR exports high-quality Japanese used tractors and vehicles to more than 100 countries worldwide.

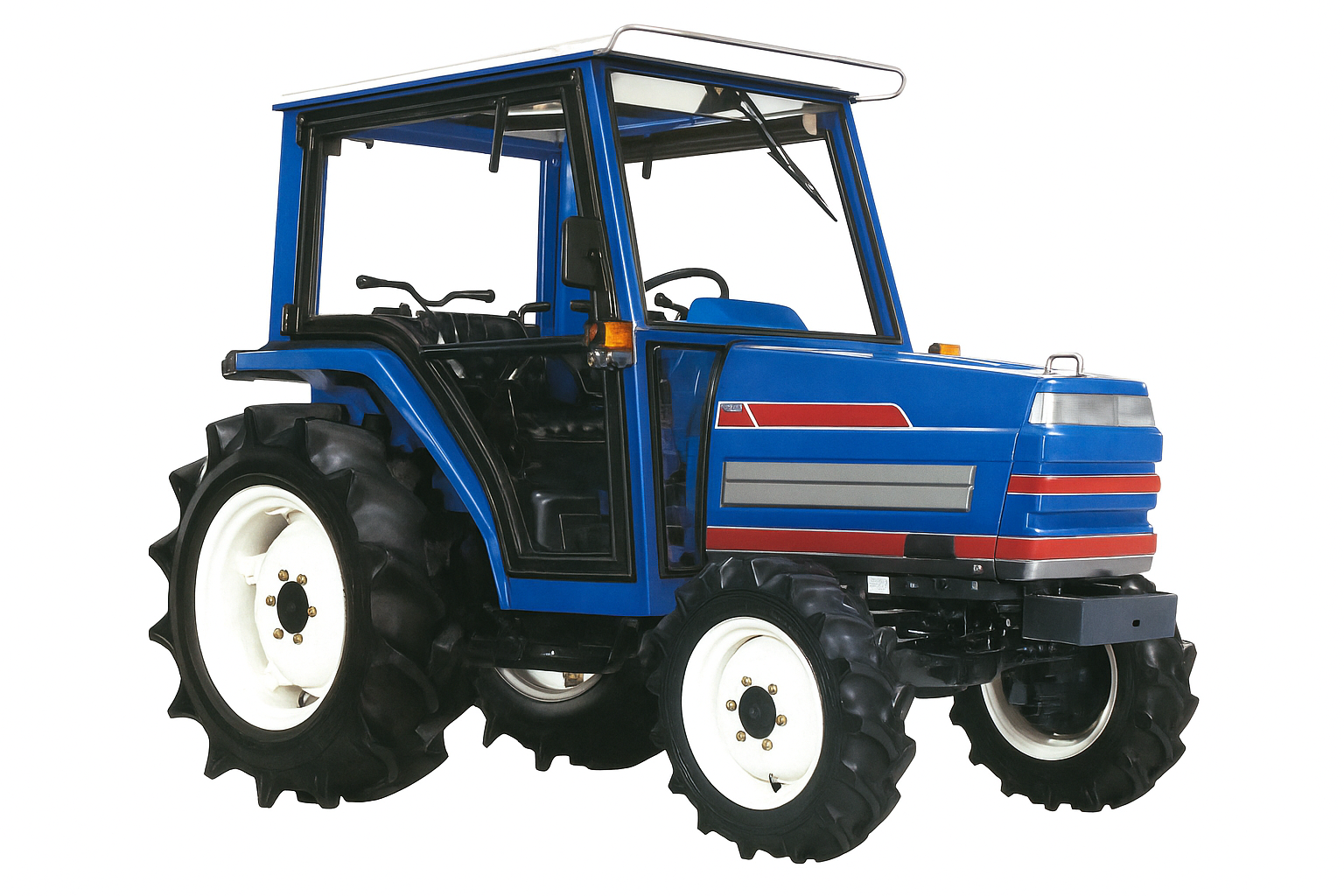

The Iseki TA287 is a compact utility tractor from the Landleader TA7 Series, produced from 1989 to 1992.
Equipped with a 1.5L Iseki 3-cylinder diesel engine, a 16-speed transmission, and both 2WD and 4WD (TA287F) options, this tractor offers excellent balance between power, efficiency, and maneuverability.
Its durable construction and simple mechanical design make it a highly reliable machine in export destinations where maintenance resources may be limited.
1. Overview
| Item | Details |
|---|---|
| Model | Iseki TA287 |
| Series | Landleader TA7 Series |
| Tractor Type | Compact Utility Tractor |
| Production Years | 1989 – 1992 |
| Manufacturer | Iseki (Japan) |
| Variants | TA287F (4WD) |
| Drive Options | 2WD or 4WD |
| Operator Station | Open station (cab optional) |
The TA287 sits above the TA267 in power and is suitable for heavier field operations while still maintaining compact handling.
2. Engine
| Item | Details |
|---|---|
| Engine Manufacturer | Iseki |
| Engine Type | 1.5L, 3-cylinder, liquid-cooled diesel |
| Displacement | 1.5 liters |
| Rated Power | 27.6 hp (20.6 kW) |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 7.9 gal (29.9 L) |
| Cooling System | Water-cooled |
| Starting System | Electric starter |
Engine Description
The 1.5L Iseki diesel engine is designed for:
-
Excellent fuel efficiency during continuous operation
-
Strong low-end torque for tillage and rotary work
-
Smooth performance with low vibration
-
Long service life due to robust Japanese engineering
-
Easy maintenance and availability of parts in global markets
3. Transmission & Driveline
| Item | Details |
|---|---|
| Transmission Type | Manual gear transmission |
| Number of Speeds | 16-speed |
| Drive Options | 2WD or 4WD (TA287F) |
| Differential Lock | Rear differential lock |
| Steering | Mechanical or optional power steering |
| Brakes | Independent left/right mechanical brakes |
The 16-speed gearbox provides precise speed control for operations such as plowing, spraying, rotary tilling, mowing, and transport.
4. PTO & 3-Point Hitch
| Item | Details |
|---|---|
| Rear PTO Type | 540 rpm (1.375″ spline) |
| PTO Speeds (at 2800 rpm) | 565 / 732 / 1053 / 1233 rpm |
| 3-Point Hitch | Rear hitch, JIS Category 1 |
| Typical Implements | Rotary tiller, mower, plow, sprayer, trailer implements |
Multiple PTO speeds allow optimal matching of implement performance to different crops, soil conditions, and working environments.
5. Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 66.9 in (169 cm) |
| Operating Weight | 2414 – 3064 lb (varies by 2WD/4WD and options) |
| Front Tire (2WD) | 5.00-15 |
| Rear Tire (2WD) | 12.4-24 |
| Typical Front Tire (4WD) | 7-16 |
| Typical Rear Tire (4WD) | 12.4-24 |
The larger wheelbase and weight provide good stability for heavier implements and trailer work while maintaining compact maneuverability for orchard and vegetable field use.
6. Electrical System
| Item | Details |
|---|---|
| Ground Polarity | Negative |
| Battery Voltage | 12V |
7. Features & Typical Applications
Key Features
-
1.5L Iseki 3-cylinder diesel engine
-
27.6 hp output for medium-duty farm work
-
16-speed transmission for flexible speed control
-
2WD and 4WD options
-
Multi-speed PTO for a wide range of implements
-
Durable Japanese construction and simple maintenance
Typical Applications
-
Vegetable and grain farming
-
Orchard and vineyard work
-
Rotary tilling and soil preparation
-
Mowing and landscaping
-
Livestock farm operations
-
Light trailer and transport work
