Iseki TA275 – Full Specifications & Model Overview
EVERY FARM TRACTOR has been exporting Japanese used tractors and commercial vehicles to more than 100 countries since 2006.

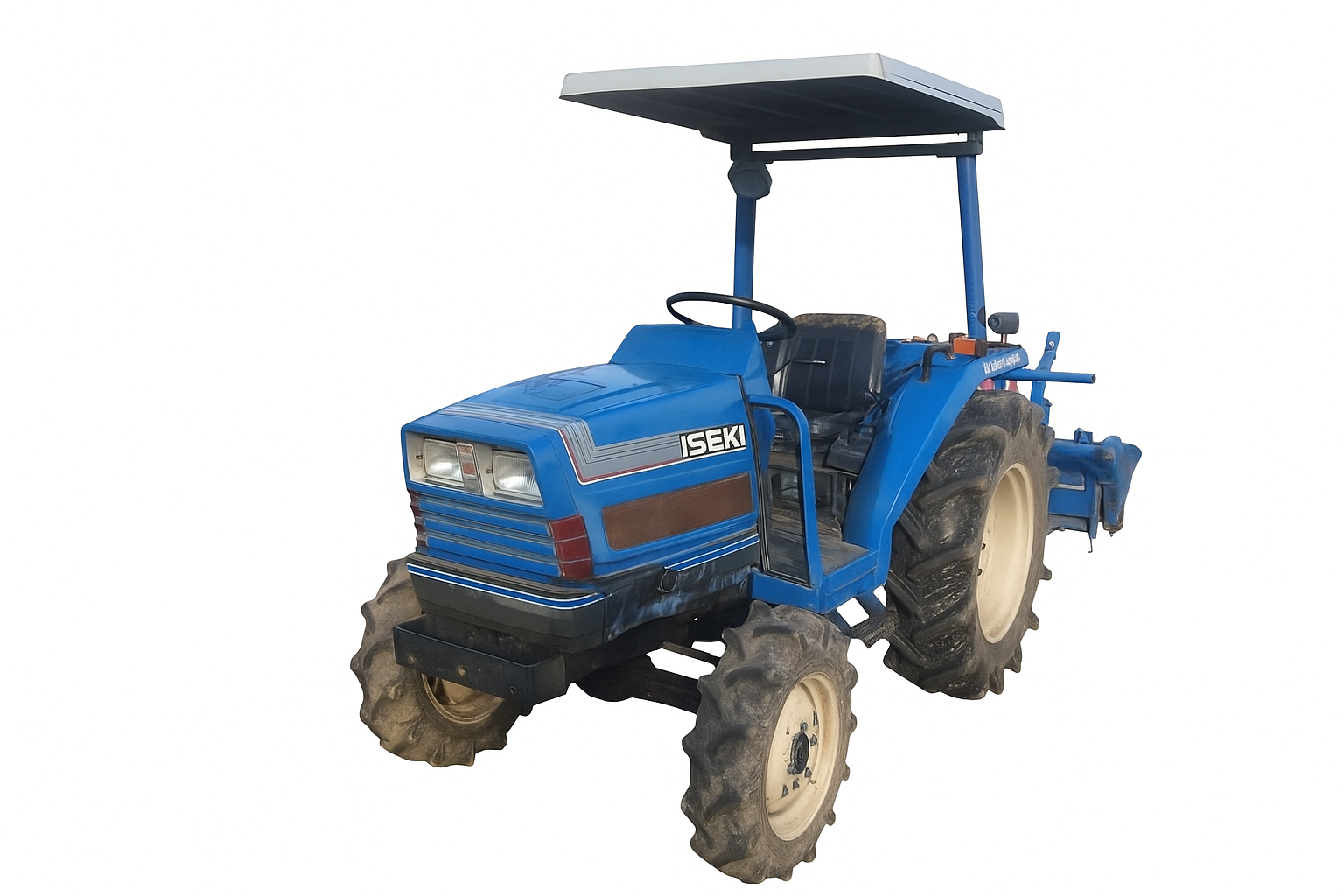

The Iseki TA275 is a compact utility tractor from the Landleader TA5 Series, produced between 1987 and 1990.
Powered by a 27 hp Isuzu 3-cylinder diesel engine, this model offers strong performance, efficient fuel consumption, and reliable operation for various agricultural applications.
With both 2WD and 4WD (TA275F) variants, the TA275 is designed for versatility on small to medium farms, orchards, and mixed-use fields.
1. Overview
| Item | Details |
|---|---|
| Model | Iseki TA275 |
| Series | Landleader TA5 Series |
| Type | Compact Utility Tractor |
| Production Years | 1987 – 1990 |
| Manufacturer | Iseki (Japan) |
| Variants | TA275F (4WD) |
| Drive Options | 2WD / 4WD |
| Operator Area | Open operator station |
2. Engine
| Item | Details |
|---|---|
| Engine Maker | Isuzu |
| Engine Type | 3-cylinder, liquid-cooled diesel |
| Displacement | approx. 1.5–1.6 L (class) |
| Rated Power | 27 hp (20.1 kW) |
| Fuel Type | Diesel |
| Fuel Tank | approx. 7.9 gal (29.9 L) |
| Cooling | Water-cooled |
| Start System | Electric starter |
Engine Description
The TA275’s Isuzu diesel engine is known for:
-
High durability and long service life
-
Low vibration from the 3-cylinder layout
-
Excellent fuel efficiency
-
Stable torque for rotary tillers and heavy implements
-
A simple mechanical structure that is easy to service in global markets
3. Transmission & Driveline
| Item | Details |
|---|---|
| Transmission | Manual gear transmission |
| Speeds | 16-speed (multi-range) |
| Drive | 2WD or 4WD (TA275F) |
| Differential Lock | Rear differential lock |
| Steering | Mechanical or optional power steering |
| Brakes | Independent left/right brakes |
The 16-speed gearbox provides fine control for slow operations such as tilling, planting, mowing, and spraying.
4. PTO & 3-Point Hitch
| Item | Details |
|---|---|
| Rear PTO | 540 rpm |
| PTO Shaft | 1.375″ (6-spline) |
| 3-Point Hitch | JIS Category 1 |
| Suitable Implements | Rotary tiller, mower, plow, sprayer, trailer implements |
The PTO system is compatible with a wide range of Japanese and international implements used in small to mid-scale farming.
5. Dimensions & Tires
(Exact TA275 figures are limited; the following reflects typical TA Series specifications.)
| Item | Details |
|---|---|
| Wheelbase | approx. 160–170 cm |
| Operating Weight | approx. 1,100 – 1,250 kg (varies by 2WD/4WD) |
| Front Tire (2WD) | 5.00-15 |
| Rear Tire (2WD) | 11.2-24 |
| Overall Type | Mid-size compact tractor |
The TA275 offers a stable wheelbase suitable for heavier implements while remaining maneuverable in tight working environments.
6. Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
7. Features & Applications
Key Features
-
27 hp Isuzu 3-cylinder diesel engine
-
16-speed manual transmission
-
2WD or 4WD (TA275F) configurations
-
Strong rear PTO with standard 540 rpm
-
Compatible with many farm implements
-
Durable Japanese construction
-
Simple maintenance and long service life
Typical Applications
-
Vegetable and crop farming
-
Orchard and vineyard operations
-
Rotary tilling and soil preparation
-
Mowing and estate maintenance
-
Livestock farm duties
-
Light trailer and transport work
