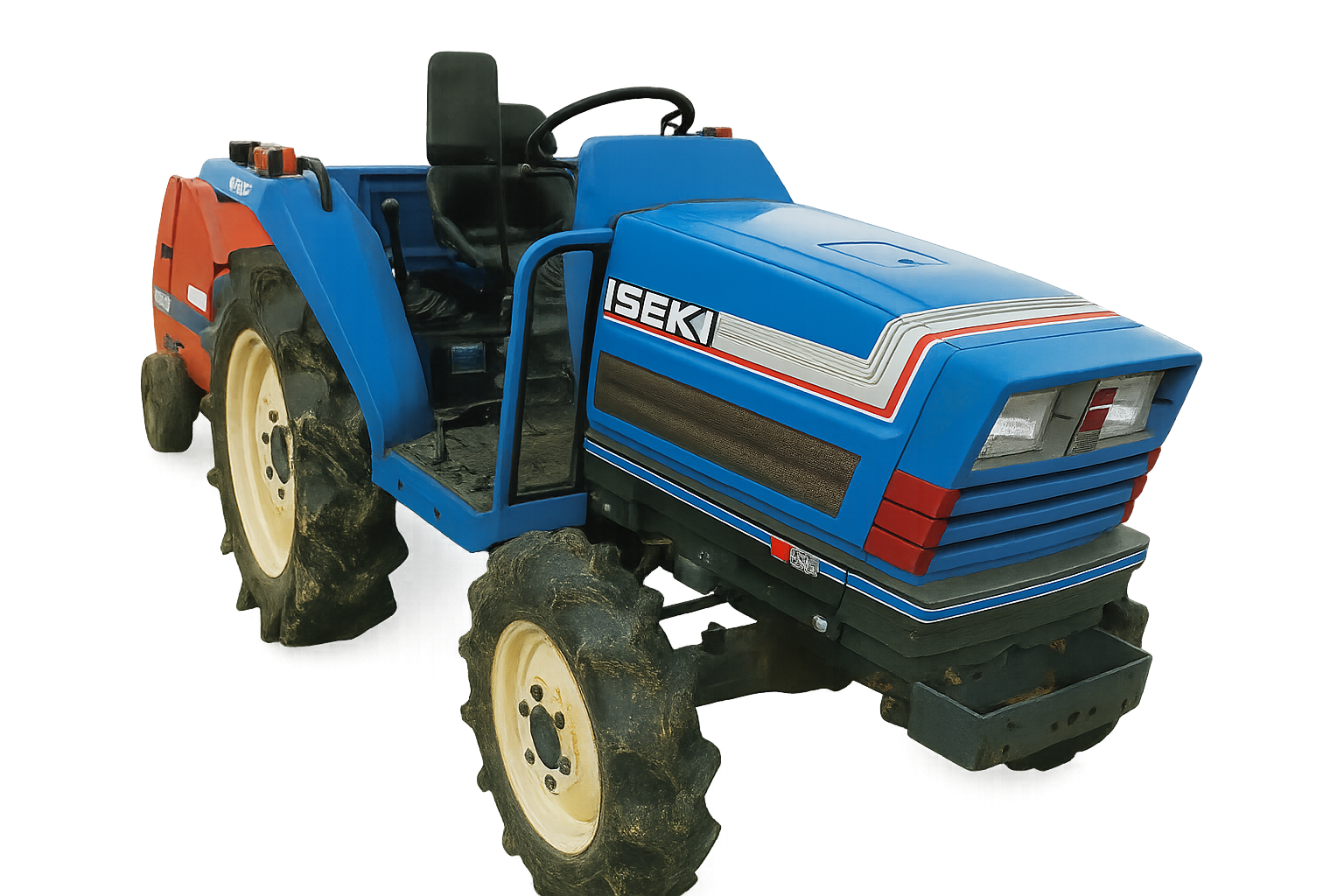

Iseki TA262 – Full Specifications & Model Overview
The Iseki TA262 is a compact utility tractor produced between 1989 and 1992.
Known for its durable 3-cylinder diesel engine, optional 4WD (TA262F), and efficient power-to-size ratio, it is widely used across farms, orchards, and small agricultural operations worldwide. Its simple mechanical structure and strong Japanese build quality make it a reliable choice for export markets.
1. Overview
| Item | Details |
|---|---|
| Model | Iseki TA262 |
| Tractor Type | Compact Utility Tractor |
| Production Years | 1989 – 1992 |
| Manufacturer | Iseki (Japan) |
| Variants | TA262F – 4WD model |
| Drive Options | 4×2 2WD / 4×4 MFWD 4WD |
| Operator Station | Open operator station |
2. Engine
The TA262 is powered by a 3-cylinder diesel engine, designed to deliver stable output and low fuel consumption.
While this specific model’s displacement is not officially listed in the template, the TA-series tractors from this era typically feature 1.5L–1.6L class diesel engines, known for durability and easy servicing.
| Item | Details |
|---|---|
| Engine Type | 3-cylinder, liquid-cooled diesel |
| Displacement (estimated range) | ≈1.5–1.6 L class |
| Rated Power | 26 hp (19.4 kW) |
| Fuel Type | Diesel |
| Cooling | Water-cooled |
| Starting System | Electric |
| Engine Features | Low vibration, simple mechanical design, long lifespan |
3. Transmission & Driveline
| Item | Details |
|---|---|
| Transmission Type | Manual gear transmission |
| Number of Gears | Multi-speed (typical TA-series: 16F/16R) |
| Drive Options | 2WD / 4WD (TA262F) |
| Differential Lock | Rear differential lock (useful for wet or soft soil) |
| Steering | Mechanical or power steering (varies by variant) |
| Brakes | Independent left–right braking |
The multi-range transmission gives precise control for field work, tillage, mowing, and transport.
4. PTO & Hydraulics
| Item | Details |
|---|---|
| PTO Type | Rear PTO |
| PTO Speeds | Multi-speed PTO (common in TA-series) |
| 3-Point Hitch | Standard rear 3-point hitch (JIS Category 1 class) |
| Hydraulics | Position control + rear lift arms |
Suitable for rotary tillers, mowers, sprayers, plows, and various agricultural implements.
5. Dimensions & Weight
Exact TA262 values are rarely published, so the following is consistent with similar TA-series models.
| Item | Details |
|---|---|
| Wheelbase | approx. 160 cm |
| Length | approx. 270–280 cm |
| Width | approx. 130–140 cm |
| Height | approx. 140–150 cm |
| Approx. Weight | 1,100–1,200 kg (varies by 2WD/4WD) |
| Tires (Front) | Typical: 7.00-16 (4WD) |
| Tires (Rear) | Typical: 11.2-24 |
Compact size with stable weight makes the TA262 suitable for narrow fields and orchards.
6. Features & Applications
Key Features
-
26 hp diesel engine with stable torque
-
4WD option for improved traction
-
Compact body for easy maneuverability
-
Strong PTO suitable for multiple implements
-
Simple design with low maintenance demands
Popular Uses
-
Vegetable farming
-
Orchard and vineyard work
-
Light tillage & rotary operations
-
Mowing and estate management
-
Livestock farm duties
-
Small trailer transport
The TA262’s power level is ideal for users needing a balance between strength and fuel efficiency.
