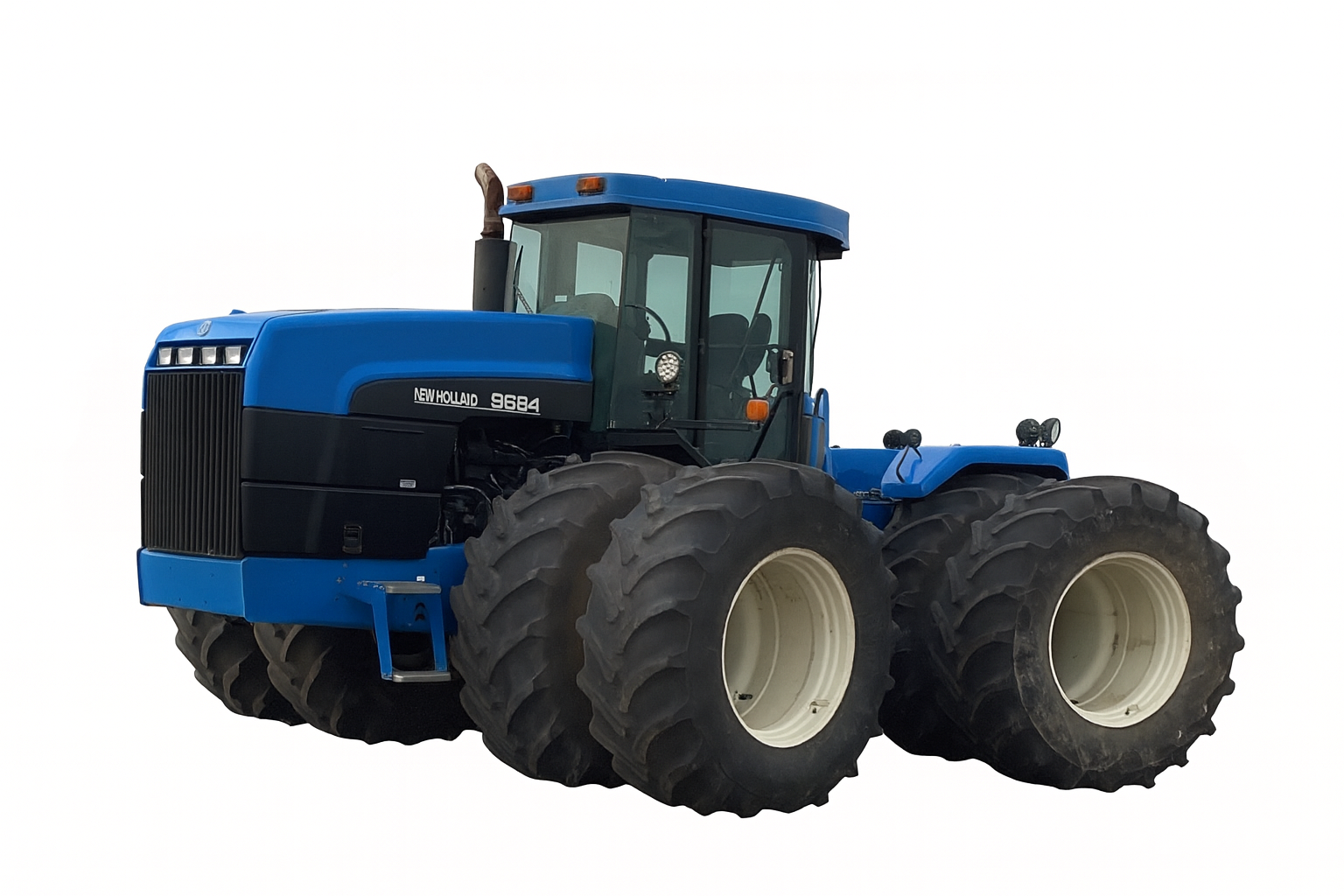

New Holland 9684 – High-Horsepower 4WD Articulated Tractor
The New Holland 9684 is a top-tier, high-horsepower four-wheel-drive articulated tractor produced from 2000 to 2001 within the 84 Series lineup. Manufactured by Versatile in Winnipeg, Manitoba, Canada, the 9684 comes equipped with a powerful 14.0L Cummins diesel engine delivering 360 horsepower.
Known for its exceptional PTO and drawbar test results, durable planetary final drives, and strong hydraulic capacity, the 9684 is designed for large-scale agriculture, deep tillage, and heavy-duty field operations.
Overview
| Item | Details |
|---|---|
| Production years | 2000 – 2001 |
| Series | 84 Series |
| Drive | 4WD articulated |
| Distributor | New Holland |
| Manufacturer | Versatile |
| Built in | Winnipeg, Manitoba, Canada |
| Variants | Versatile 2360 (similar model) |
| Engine horsepower (gross) | 360 hp (268.5 kW) |
| PTO power (tested) | 349.1 hp (260.3 kW) |
| Drawbar power (tested) | 277.2 hp (206.7 kW) |
Engine
| Item | Specification |
|---|---|
| Manufacturer | Cummins |
| Engine model | Cummins 14.0L, 6-cylinder diesel |
| Displacement | 14.0 liters |
| Cylinders | 6 |
| Fuel type | Diesel |
| Rated PTO speed | 1000 rpm at 2100 engine rpm |
Power Ratings
| Power Type | Output |
|---|---|
| Engine (gross) | 360 hp |
| PTO (tested) | 349.1 hp |
| Drawbar (tested) | 277.2 hp |
Transmission
| Option | Description |
|---|---|
| 12-speed partially synchronized | Durable, heavy-duty transmission |
| 12-speed full powershift | Capable of smooth shifts under load |
| Additional drivetrain features | Details |
|---|---|
| Final drives | Planetary |
| Steering | Articulated power steering |
| Brakes | Hydraulic disc |
| Cab | Standard with air-conditioning |
Hydraulics
| Item | Specification |
|---|---|
| Type | Closed center |
| Reservoir capacity | 20 gal (75.7 L) |
| Total hydraulic system | 33 gal (124.9 L) |
| Pump flow | 50 gpm (189.2 L/min) |
| Steering flow | 27 gpm (102.2 L/min) |
| System pressure | 2250 psi (155.1 bar) |
| Steering pressure | 2500 psi (172.4 bar) |
| Valves | 4 |
Capacity
| Item | Specification |
|---|---|
| Fuel tank | 230 gal (870.6 L) |
| Hydraulic reservoir | 20 gal (75.7 L) |
| Total hydraulic system | 33 gal (124.9 L) |
Tractor Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category IVN / III |
| Rear lift (24” / 610 mm) | 13,000 lbs (5,896 kg) |
| Drawbar | Category 4 |
| Rear PTO | Independent |
| PTO type | 1000 rpm (1.75 in) |
| PTO clutch | Electro-hydraulic wet disc |
| Engine rpm for PTO | 1000 @ 2100 rpm |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 133 in (337 cm) |
| Operating weight | 19,730 – 30,630 lbs |
| Front tires | 20.8-42 |
| Rear tires | 20.8-42 |
