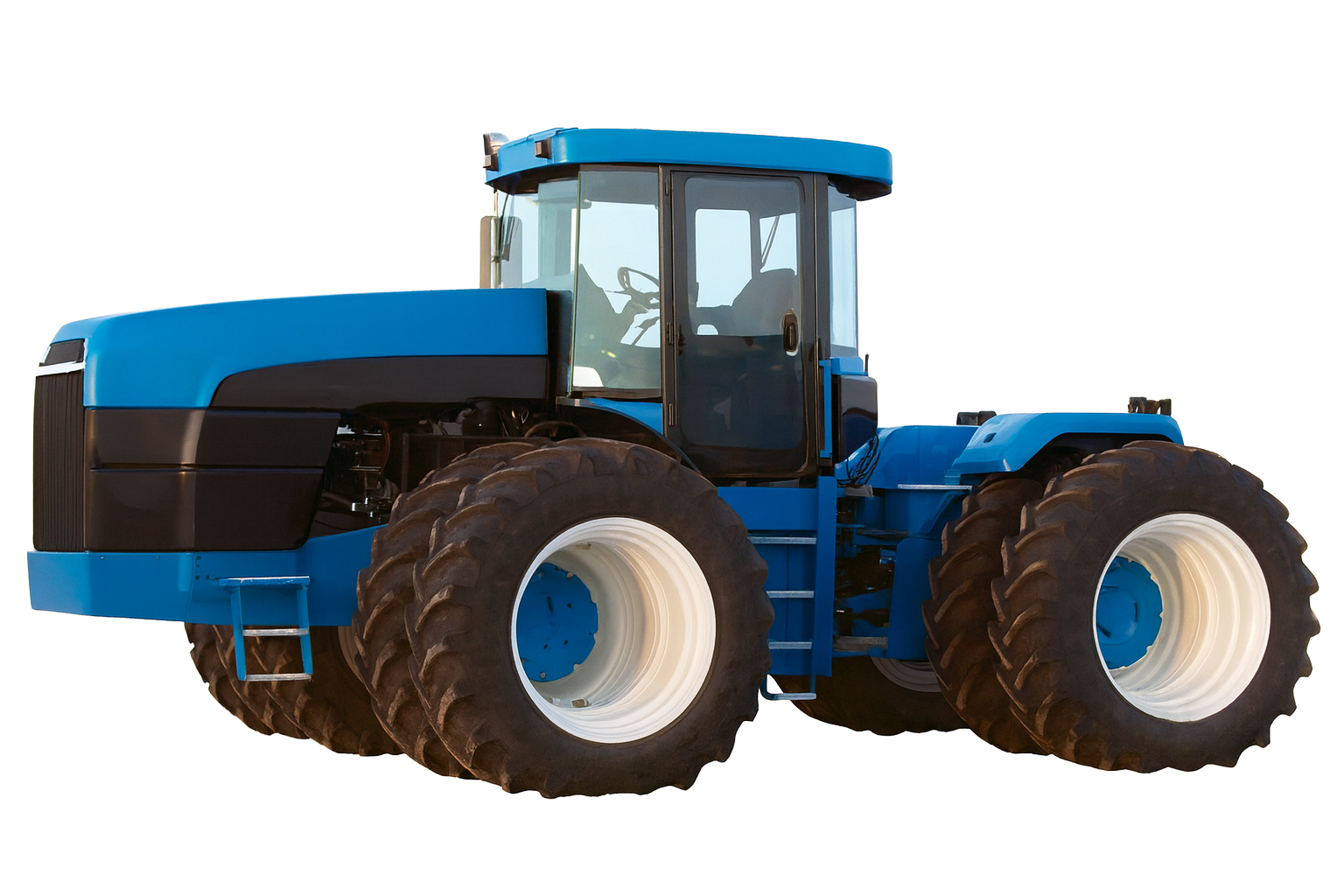

New Holland 9484 – High-Horsepower 4WD Articulated Tractor
The New Holland 9484 is a powerful four-wheel-drive articulated tractor produced from 2000 to 2001 as part of the 84 Series. Built by Versatile in Winnipeg, Manitoba, Canada, the 9484 is equipped with a robust 10.8L Cummins diesel engine rated at 310 horsepower.
Designed for heavy tillage, deep ripping, air seeding, and large-scale field preparation, the 9484 offers exceptional hydraulic performance, strong PTO capability, and durable planetary final drives.
Overview
| Item | Details |
|---|---|
| Production years | 2000 – 2001 |
| Series | 84 Series |
| Drive | 4WD articulated |
| Distributor | New Holland |
| Manufacturer | Versatile |
| Built in | Winnipeg, Manitoba, Canada |
| Engine power (gross) | 310 hp (231.2 kW) |
Engine
| Item | Specification |
|---|---|
| Manufacturer | Cummins |
| Engine model | Cummins 10.8L, 6-cylinder diesel |
| Displacement | 10.8 liters |
| Cylinders | 6 |
| Fuel type | Diesel |
| Rated PTO speed | 1000 rpm at 2100 engine rpm |
Transmission
| Option | Description |
|---|---|
| 12-speed partially synchronized | Reliable heavy-duty mechanical transmission |
| 12-speed full powershift | Smooth shifting under load for demanding work |
| Additional drivetrain features | Details |
|---|---|
| Steering | Articulated power steering |
| Final drives | Planetary |
| Brakes | Hydraulic disc brakes |
| Cab | Factory-installed with air-conditioning |
Hydraulics
| Item | Specification |
|---|---|
| Type | Closed center |
| Reservoir capacity | 20 gal (75.7 L) |
| Total hydraulic system | 33 gal (124.9 L) |
| Pump flow | 45 gpm (170.3 L/min) |
| Steering flow | 27 gpm (102.2 L/min) |
| System pressure | 2250 psi (155.1 bar) |
| Steering pressure | 2500 psi (172.4 bar) |
| Rear valves | 4 |
Capacity
| Item | Specification |
|---|---|
| Fuel tank | 230 gal (870.6 L) |
| Hydraulic reservoir | 20 gal (75.7 L) |
| Total hydraulic system | 33 gal (124.9 L) |
Tractor Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category IVN / III |
| Rear lift (at 24”/610 mm) | 13,000 lbs (5,896 kg) |
| Drawbar | Category 4 |
| Rear PTO | Independent |
| PTO type | 1000 rpm (1.75 in) |
| PTO clutch | Electro-hydraulic wet disc |
| PTO speed | 1000 rpm @ 2100 engine rpm |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 133 in (337 cm) |
| Operating weight | 18,844 lbs (8,547 kg) |
| Front tires | 20.8-38 |
| Rear tires | 20.8-38 |
