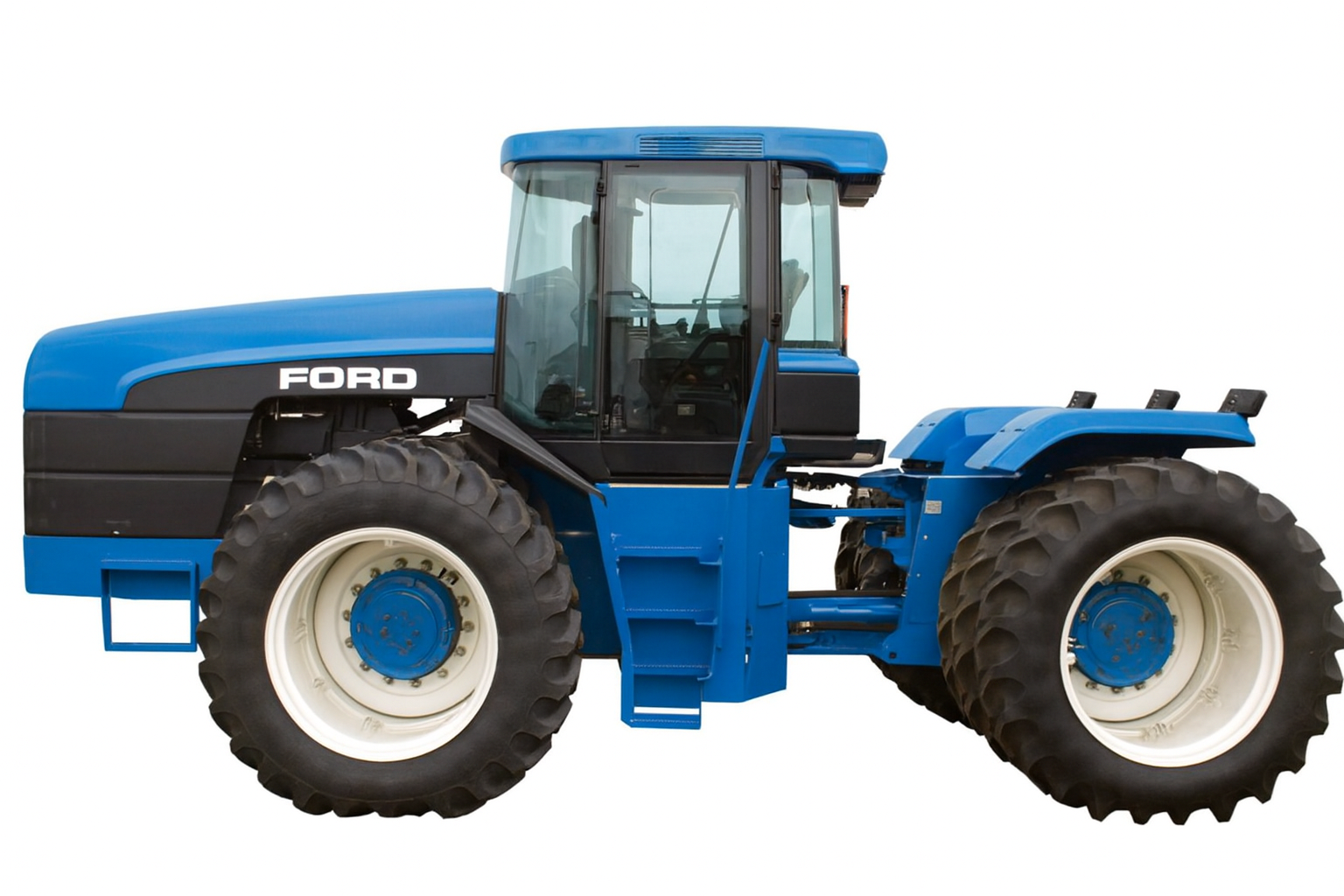

New Holland 9480 – High-Horsepower 4WD Articulated Tractor
The New Holland 9480 is a heavy-duty, four-wheel-drive articulated tractor produced between 1994 and 1995 as part of the 80 Series. Built by Versatile in Winnipeg, Manitoba, Canada, this model is equipped with a massive 14.0L Cummins diesel engine delivering 300 horsepower.
Designed for large-scale farming and tough tillage operations, the 9480 offers strong PTO performance, durable outboard planetary final drives, multiple transmission options, and excellent hydraulic capability for demanding field implements.
Overview
| Item | Details |
|---|---|
| Production years | 1994 – 1995 |
| Series | 80 Series |
| Drive | 4WD articulated |
| Distributor | New Holland |
| Manufacturer | Versatile |
| Built in | Winnipeg, Manitoba, Canada |
| Engine power | 300 hp (223.7 kW) |
| PTO power (claimed) | 264 hp (196.9 kW) |
| Original price (1995) | $110,000 USD |
Engine
| Item | Specification |
|---|---|
| Manufacturer | Cummins |
| Engine model | Cummins 14.0L, 6-cylinder diesel |
| Displacement | 14.0 liters |
| Cylinders | 6 |
| Fuel type | Diesel |
| Rated PTO speed | 1000 rpm @ 2100 engine rpm |
Transmission
| Option | Description |
|---|---|
| 12-speed partially synchronized | Heavy-duty mechanical transmission |
| 12-speed full powershift | Smooth shifts under load |
| Other drivetrain features | Details |
|---|---|
| Steering | Articulated hydrostatic power steering |
| Final drives | Outboard planetary |
| Brakes | Hydraulic disc brakes |
| Cab | Standard with air-conditioning |
Hydraulics
| Item | Specification |
|---|---|
| Type | Closed center, load-sensing |
| Reservoir capacity | 15.3 gal (57.9 L) |
| System pressure | 2500 psi (172.4 bar) |
| Pump flow | 30 gpm (113.6 L/min) |
| Steering flow | 30 gpm (113.6 L/min) |
Capacity
| Item | Specification |
|---|---|
| Fuel tank | 245 gal (927.3 L) |
| Hydraulic system | 15.3 gal (57.9 L) |
Tractor Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category IVN |
| Hitch control | Electronic position control |
| Rear lift (24”/610 mm) | 12,753 lbs (5,784 kg) |
| Rear PTO | Independent |
| PTO type | 1000 rpm (1.75 in) |
| PTO speed | 1000 @ 2100 engine rpm |
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 133.1 in (338 cm) |
| Operating weight | 24,165 lbs (10,961 kg) |
| Front tires | 20.8×38 |
| Rear tires | 20.8×38 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging capacity | 130 amps |
| Batteries | 3 × 12V |
| Battery CCA | 950 |
| Battery group | 31 |
