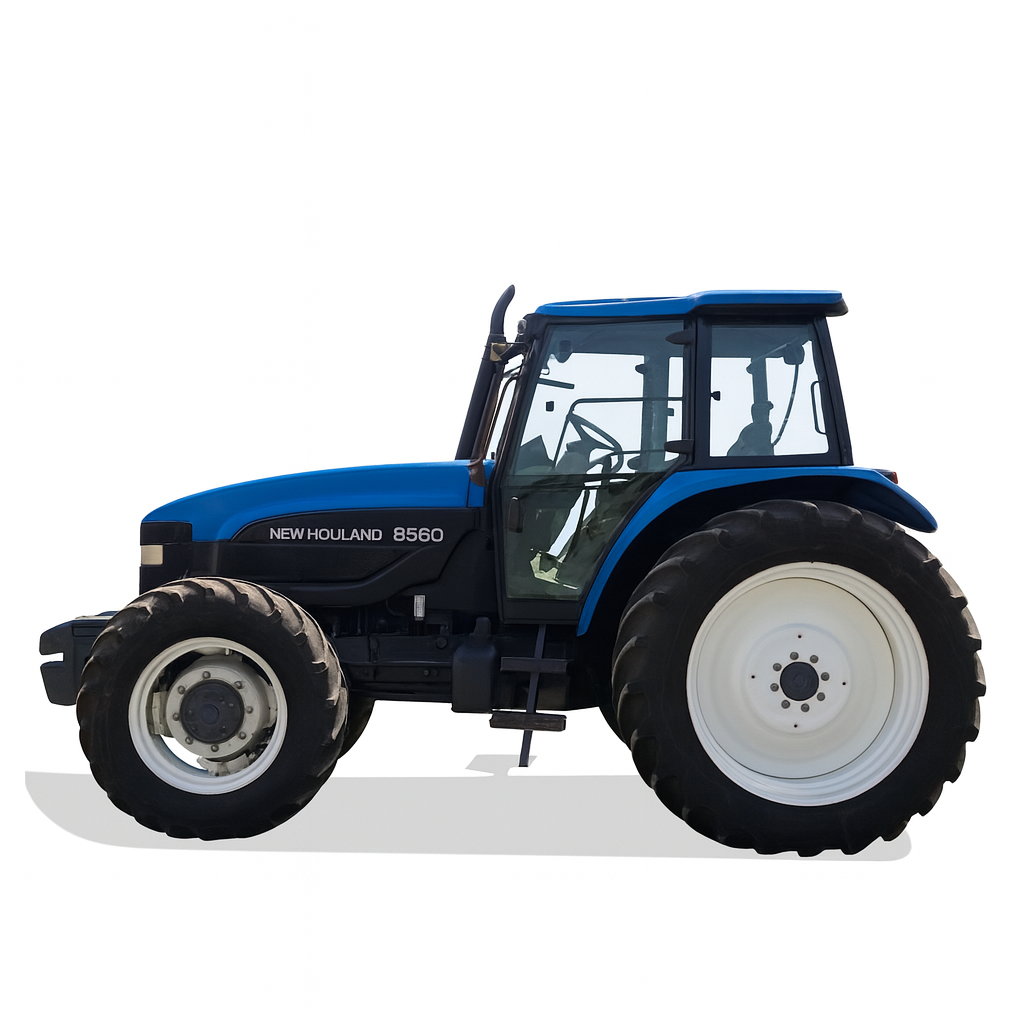

The New Holland 8560 is a high-performance row-crop tractor designed for both strength and versatility. Manufactured in England between 1996 and 1999, this model is part of the 60 Gemini Series, known for its reliability, precision, and agricultural efficiency. With a powerful 7.5L six-cylinder diesel engine and advanced transmission systems, the 8560 provides consistent power and smooth operation for demanding farm tasks.
Overview
| Model | New Holland 8560 |
|---|---|
| Production Years | 1996 – 1999 |
| Manufacturer | New Holland |
| Type | Row-Crop Tractor |
| Factory | England |
| Original Price (1999) | $73,000 |
| Series | 60 Gemini Series |
| Similar Model | Fiat M160 |
Engine
| Engine Model | New Holland 7.5L Diesel |
|---|---|
| Type | 6-cylinder, liquid-cooled diesel |
| Displacement | 7.5 liters |
| Power (PTO) | 130 hp (96.9 kW) |
| Drawbar (Tested) | 120 hp (89.5 kW) |
| PTO (Tested) | 143 hp (106.6 kW) |
| Fuel Capacity | 85 gal (321.7 L) |
| Emissions Control | Mechanical injection system |
| Cooling System | Liquid-cooled with high-capacity radiator |
The New Holland 8560’s engine delivers exceptional torque and durability, offering smooth and efficient performance in both fieldwork and transport applications.
Transmission
| Type | 17-speed or 18-speed partial power shift |
|---|---|
| Drive Options | 4×2 (2WD) / 4×4 (MFWD 4WD optional) |
| Differential Lock | Rear (2WD) or front & rear (4WD) with manual/auto modes |
| Steering | Hydrostatic power steering |
| Brakes | Hydraulic wet disc brakes |
| Clutch | Independent hydraulic clutch system |
The transmission is engineered for smooth shifting and responsive control, allowing the operator to maintain speed and efficiency even under load.
Hydraulics
| Type | Closed-center load-sensing |
|---|---|
| System Capacity | 26.4 gal (99.9 L) |
| Pressure | 2755 psi (190 bar) |
| Valves | 2 to 4 |
| Pump Flow | 26 gpm (98.4 L/min) |
| Steering Flow | 16.4 gpm (62.1 L/min) |
This advanced hydraulic system supports a wide range of attachments, ensuring reliable operation for plowing, lifting, or heavy-duty farming applications.
Dimensions
| Wheelbase (2WD) | 108.3 in (275 cm) |
| Wheelbase (4WD) | 107.2 in (272 cm) |
| Weight | 12,386 – 13,596 lbs |
| Rear Tire | 18.4R38 |
| Front Tire | 11.00-16 |
The tractor’s robust frame and balanced weight distribution enhance traction, stability, and operator comfort even during extended work hours.
Power Take-Off (PTO)
| Type | Independent |
|---|---|
| Speeds | 540 / 1000 RPM |
| Control | Electro-hydraulic with safety interlock |
Performance
The New Holland 8560 is ideal for large-scale operations requiring dependable performance. Its excellent power-to-weight ratio ensures fuel efficiency, while its superior hydraulic and PTO systems support modern implements with ease.
Why Choose the New Holland 8560?
The 8560 combines raw strength with refined engineering, delivering:
-
Exceptional fuel efficiency and torque
-
Reliable performance under heavy workloads
-
Easy maintenance and durable construction
-
Compatibility with modern implements
Its reputation for dependability makes it a favorite among farmers worldwide.
