At EVERY FARM TRACTOR, we have proudly exported Japanese used tractors and vehicles to over 100 countries since 2006. One of the standout models in our inventory is the Yanmar AF-30 – a high-performance compact tractor perfect for both small and medium-scale farming needs.
This page offers full details on the AF-30, including engine specs, transmission type, and key features. Global users searching for reliable, used Japanese tractors will find this model an excellent choice. For inquiries, please visit our official contact form at:
👉 EVERY FARM TRACTOR contact form
🔍 Overview
| Item | Details |
|---|---|

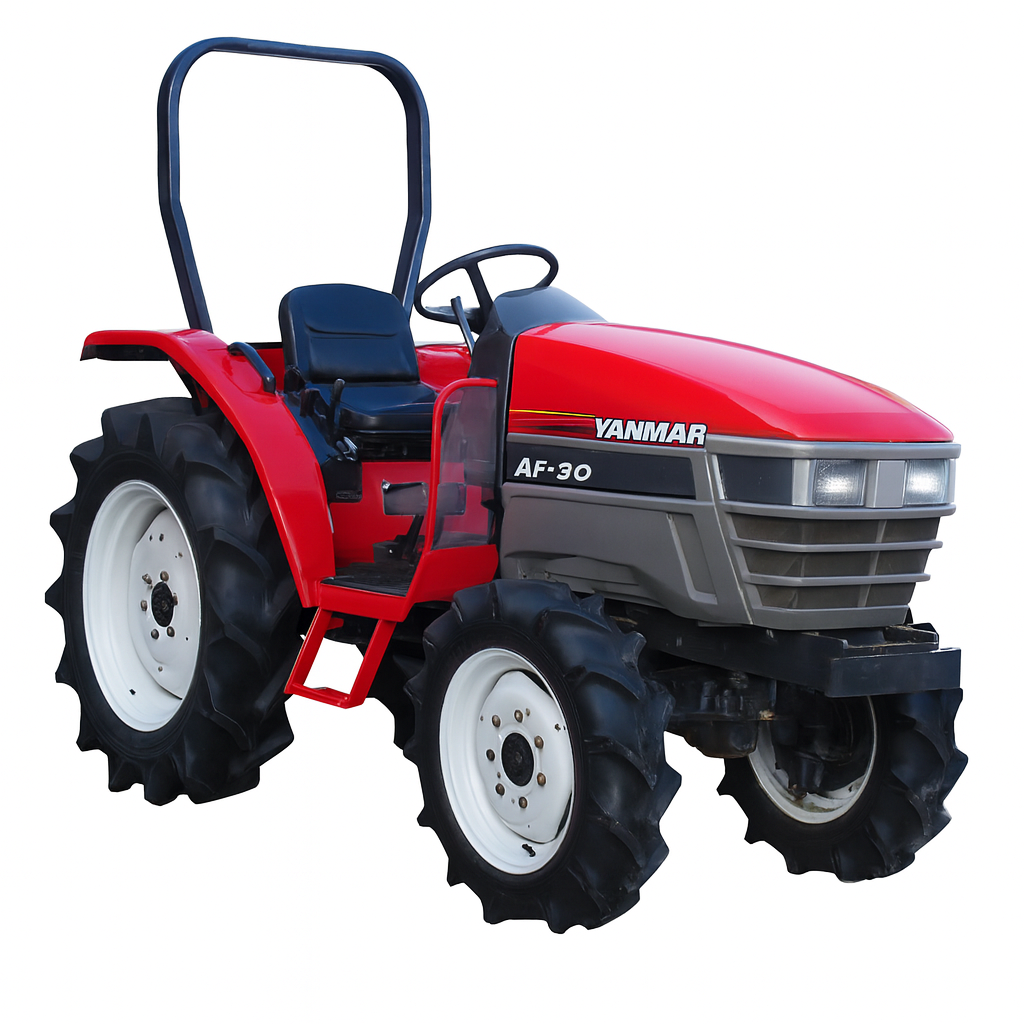

| Model | Yanmar AF-30 |
| Series | AF Series (1992 – 1997) |
| Type | Compact Utility Tractor |
| Manufacturer | Yanmar |
| Engine Power | 29.6 hp / 22.1 kW |
| Drive | 4WD with Power Steering |
| Operator Station | Two-post ROPS (Cab optional) |
🛠️ Engine
| Specification | Details |
|---|---|
| Engine Model | Yanmar 3-cylinder diesel |
| Displacement | 1.5L |
| Fuel Tank Capacity | 10 gallons / 37.9 liters |
| Cooling System | Liquid-cooled |
⚙️ Transmission
| Type | Details |
|---|---|
| Transmission Options | 16-speed shuttle |
| Optional Power Shift | 16-speed four-speed shift |
This model supports precise control for agricultural work, especially helpful in tight spaces or uneven terrain.
📏 Dimensions & Tires
| Measurement | Value |
|---|---|
| Wheelbase | 70.9 in / 180 cm |
| Weight | 3042 lbs / 1379 kg |
| Front Tire | 8-18 |
| Rear Tire | 12.4-28 |
The wide stance and heavy build give the AF-30 impressive stability and traction for all-season use.
🔌 Electrical System
| Component | Specification |
|---|---|
| Ground | Negative |
| Alternator | 35 amps |
| Battery Voltage | 12V |
| Battery Capacity | 70 AH |
🔄 PTO & Hitch
| PTO Specification | Value |
|---|---|
| Rear PTO Type | 540 RPM (1.375-inch shaft) |
| Engine RPM Options | 595, 816, 1039, 1352, -749 @2800 RPM |
| Rear Hitch Type | JIS1 |
You can easily attach rotary tillers, plows, sprayers, or mowers using the standard rear hitch and PTO system.
🌍 Exported Globally by EVERY FARM TRACTOR
EVERY FARM TRACTOR supplies quality Japanese used tractors like the Yanmar AF-30 to clients across Africa, Asia, Europe, and the Americas. We ensure every unit is inspected and ready for export with necessary documentation and support.
Whether you’re replacing an old tractor or expanding your farming fleet, the AF-30 is a dependable choice. Our experienced team is ready to help you every step of the way.
👉 Contact us now via the EVERY FARM TRACTOR contact form
If you are looking for YANMAR TRACTOR, please check our stock lists.
Used YANMAR TRACTOR for sale
Let’s work together !!
