Since 2006, EVERY FARM TRACTOR has proudly exported quality Japanese tractors to over 100 countries. Among the most sought-after models is the Yanmar AF-22, known for its balance of power, reliability, and compact design. Whether you’re managing a small field or a larger estate, this model delivers.
Overview of the Yanmar AF-22

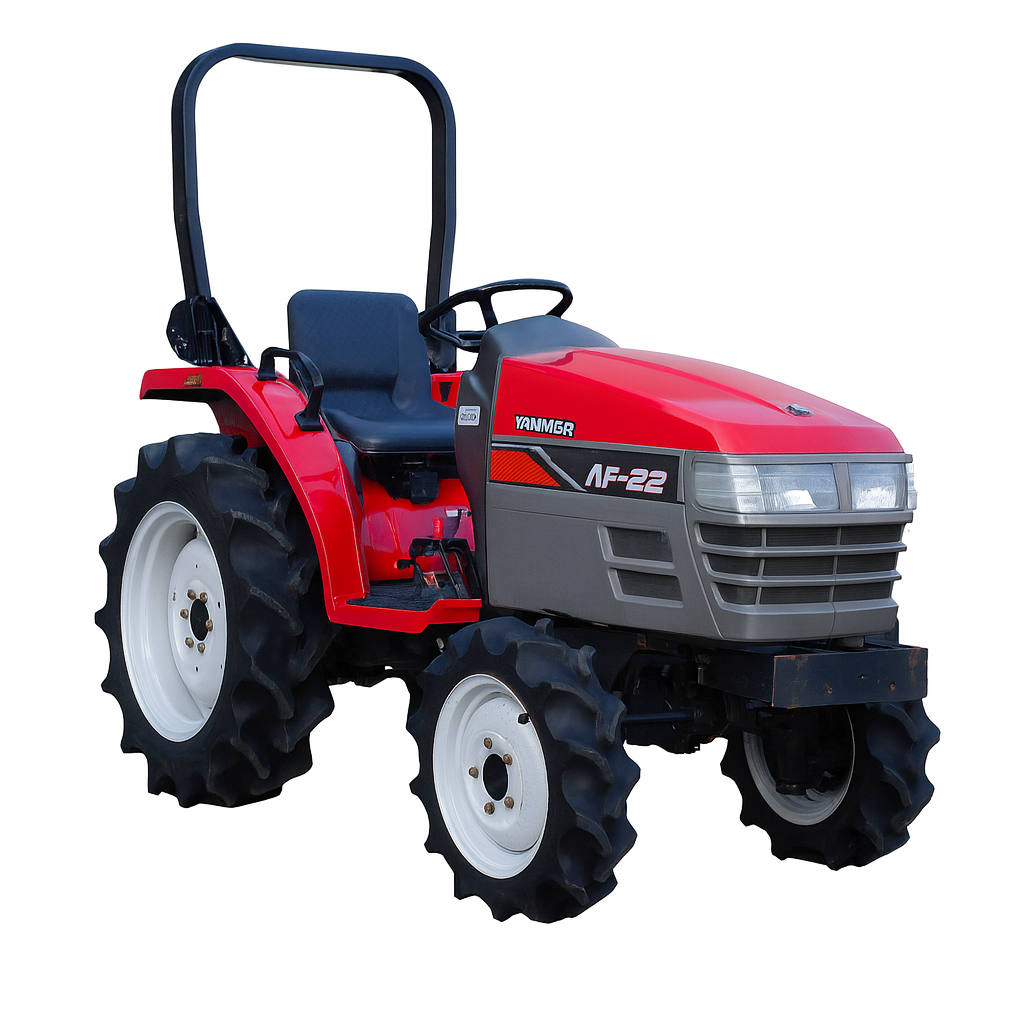

The Yanmar AF-22 is a compact utility tractor that was produced from 1992 to 1997. Belonging to Yanmar’s acclaimed AF Series, it’s designed to handle a wide range of agricultural tasks with ease.
| Category | Details |
|---|---|
| Model | Yanmar AF-22 |
| Years of Production | 1992 – 1997 |
| Manufacturer | Yanmar |
| Series | AF Series |
| Type | Compact Utility Tractor |
| Engine Power | 21.7 hp (16.2 kW) |
Engine Specifications
At the heart of the AF-22 lies a 1.4L 3-cylinder Yanmar diesel engine. It provides dependable performance, excellent fuel economy, and longevity that farmers appreciate.
| Specification | Detail |
|---|---|
| Engine Type | Yanmar 3-cylinder diesel |
| Displacement | 1.4 liters |
| Horsepower | 21.7 hp |
| Fuel Capacity | 10 gallons (37.9 liters) |
Transmission & Performance
The Yanmar AF-22 comes with two transmission options: a 16-speed shuttle or a 16-speed four-speed power shift. This flexibility ensures smoother operation in varied field conditions.
| Transmission Options | 16-speed shuttle / 16-speed power shift |
|---|---|
| Drive | 4WD |
| Steering | Power steering |
| Operator Station | Open ROPS (Cab optional) |
Power Take-Off (PTO) & Hitch
The tractor includes a JIS1 rear hitch type with a standard 540 PTO, offering multiple speed settings, making it ideal for use with rotary tillers, mowers, and other implements.
| Rear PTO | 540 rpm (1.375-inch shaft) |
|---|---|
| Engine PTO Speeds (RPM @ 2500) | 551, 756, 963, 1293, -694 |
| Rear Hitch Type | JIS1 |
Dimensions & Tires
Despite being compact, the AF-22 has a strong and stable chassis that ensures excellent traction and performance across different terrains.
| Wheelbase | 60.6 inches (153 cm) |
|---|---|
| Weight | 2,568 lbs (1,164 kg) |
| Front Tire Size | 6-14 |
| Rear Tire Size | 9.5-22 |
Reliable Electrical System
The tractor is equipped with a robust electrical system, supporting both starting and lighting requirements efficiently.
| Charging System | Alternator (35 amps) |
|---|---|
| Battery | 12V / 70AH |
Why Choose the Yanmar AF-22?
The Yanmar AF-22 combines fuel-efficient engineering, durable components, and smooth drivability, making it a favorite among farmers globally. Moreover, its compact size does not compromise performance, allowing it to operate efficiently in tight fields.
Export Available Worldwide
At EVERY FARM TRACTOR, we specialize in exporting quality used Japanese tractors like the Yanmar AF-22 to countries all over the world. Our customers trust us for:
-
Fast shipping
-
Expert support
-
Reliable machinery
👉 Click here to inquire now via the EVERY FARM TRACTOR contact form
Let us help you find the right tractor for your needs!
