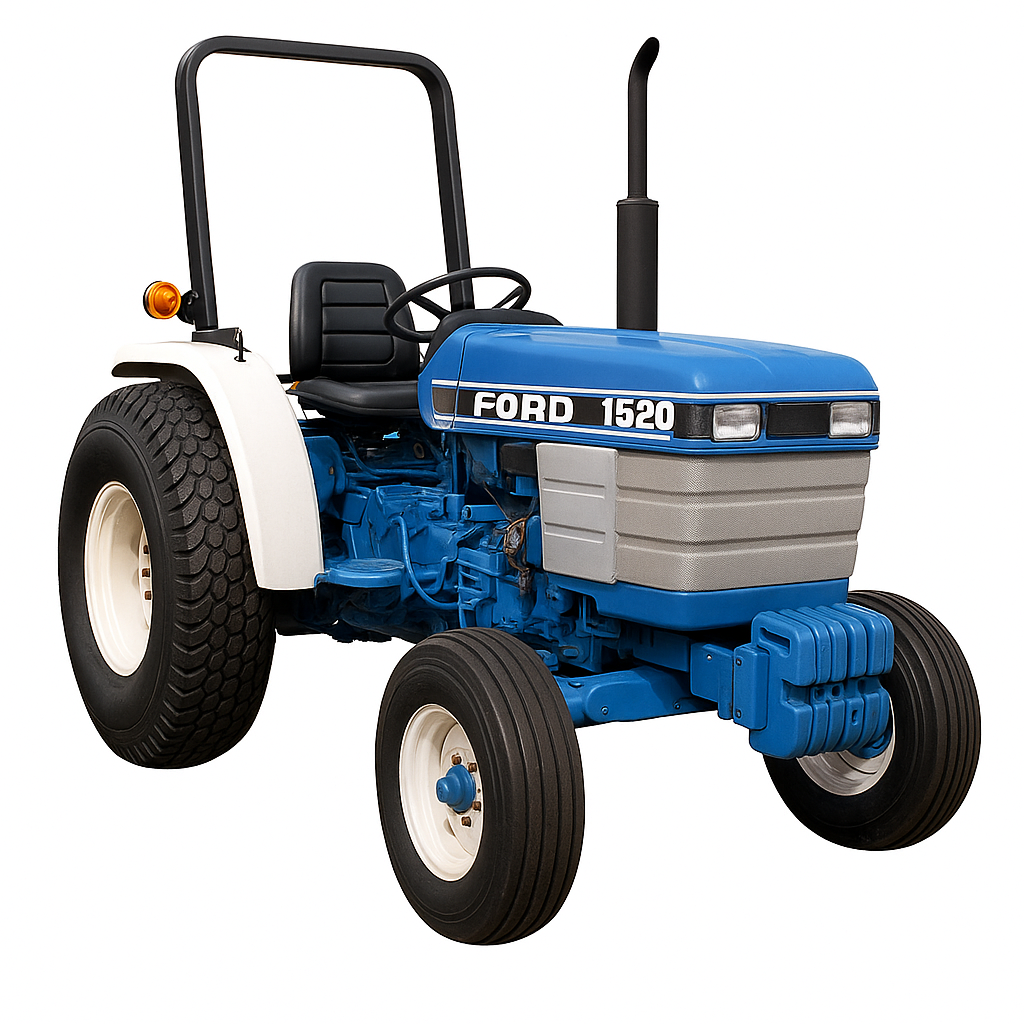

The Ford 1520 is a compact utility tractor manufactured by Shibaura in Japan and distributed globally by Ford between 1987 and 1995. Designed for durability and efficiency, this model is a favorite among small-scale farmers and property owners worldwide. EVERY FARM TRACTOR proudly exports the Ford 1520 to over 100 countries, offering reliable access to quality Japanese used tractors.
Engine Specifications
| Specification | Detail |
|---|---|
| Engine Model | Shibaura 3-cylinder diesel |
| Displacement | 1.3 L |
| Gross Horsepower | 23 hp (17.2 kW) |
| Net Horsepower | 22 hp (16.4 kW) |
| PTO Horsepower | 19.5 hp (gear), 18.5 hp (hydro) |
Transmission Options
| Type | Speeds |
|---|---|
| Gear | 9-speed manual |
| Hydrostatic | Variable-speed hydro |
Mechanical Features
-
2WD or 4WD available
-
Power steering
-
Wet disc brakes
-
Two-post ROPS (Roll-Over Protective Structure)
Hydraulic System
| Specification | Detail |
|---|---|
| Type | Open center |
| Capacity | 5.8 gal (22 L) |
| Pressure | 2133 psi |
| Pump Flow | 6.4 gpm |
| Total Flow | 9.2 gpm |
Hitch & PTO
| Feature | Detail |
|---|---|
| Rear Hitch Type | Category I |
| Rear Lift Capacity (at ends) | 1,934 lbs (877 kg) |
| Rear PTO Type | 540 rpm |
| Mid PTO Type (optional) | 2000 rpm |
| PTO Control | Transmission/live optional |
Dimensions & Tires
| Feature | Value |
|---|---|
| Wheelbase | 63 in (160 cm) |
| Weight | 2,156–2,278 lbs |
| Front Tires | 5.00-15 |
| Rear Tires | 9.5-24 (2WD) |
Compatible Attachments
-
60-inch mid-mount mower
-
Front-end loader
-
Snowblower
-
Backhoe
-
Blade
Serial Number Guide
Location: Left side of transmission housing
-
1987: UH21001
-
1988: UH22102
-
1989: UH23801
-
1990: UH25507
-
1991: UH26935
-
1992: UH28254
-
1993: UH29228
-
1994: UH30030
-
1995: UH31125
-
1996: UH31815
Why Choose the Ford 1520?
The Ford 1520 offers a perfect balance of power, performance, and versatility. With multiple PTO options, strong hydraulic capacity, and a Japanese-made diesel engine, it’s ideal for mowing, plowing, and more. Whether you’re managing a hobby farm or a large property, the 1520 will support your operation with minimal maintenance and maximum efficiency.
Global Export by EVERY FARM TRACTOR
EVERY FARM TRACTOR has been exporting reliable used tractors like the Ford 1520 since 2006. Our tractors reach satisfied customers in over 100 countries. We help you find the best model and ship it directly to your location.
