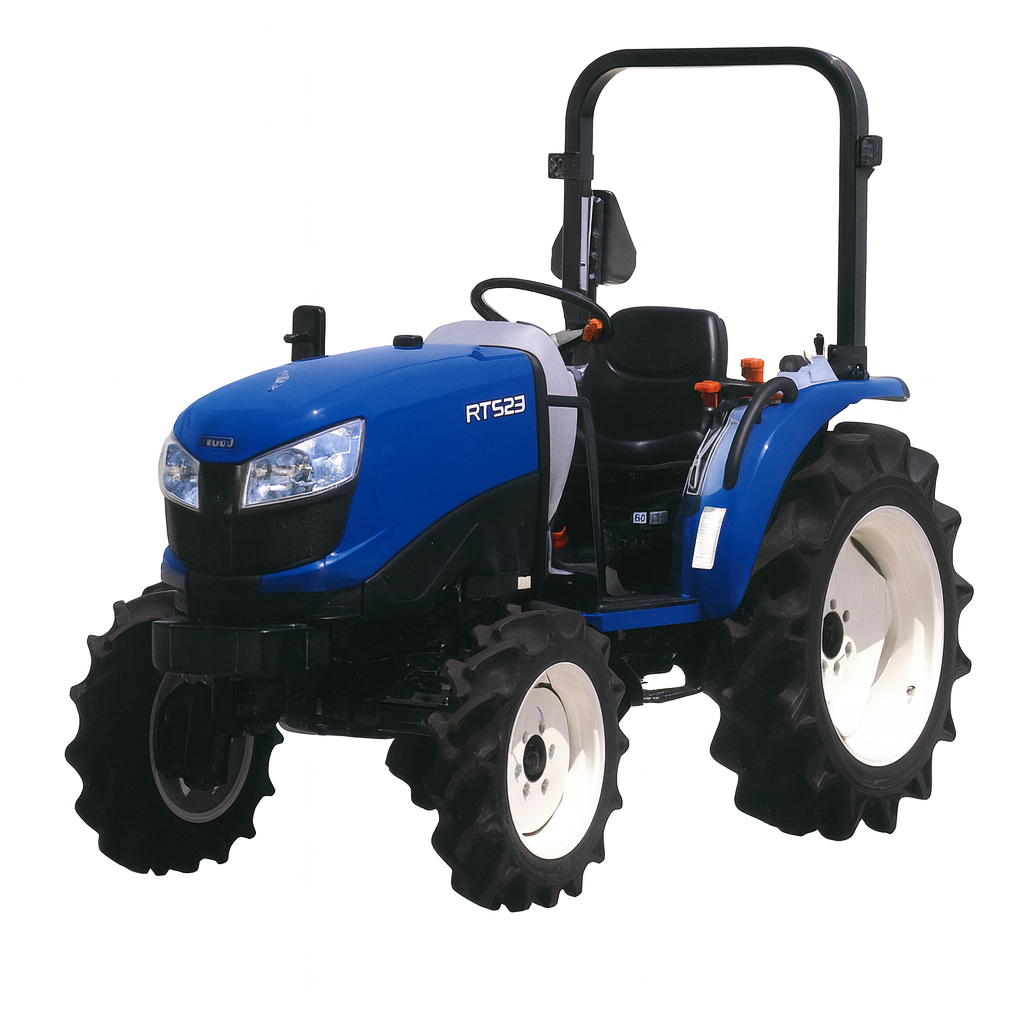

Looking for a compact tractor with exceptional power, durability, and smooth operation? The Iseki RTS23 is a smart choice for farmers, landscapers, and property managers who want Japanese quality and compact versatility. Built between 2016 and 2023, this model belongs to the highly acclaimed RTS Series and is perfect for diverse applications, from vegetable farming to orchard work.
At EVERY FARM TRACTOR, we have proudly exported used Japanese tractors to over 100 countries since 2006. The RTS23 stands out among compact machines, offering a rare blend of horsepower, agility, and long-term reliability.
🔍 Overview
| Specification | Detail |
|---|---|
| Model | Iseki RTS23 |
| Series | RTS Series (RTS22 / RTS23 / RTS25) |
| Production Years | 2016 – 2023 |
| Tractor Type | Compact Utility Tractor |
| Engine Power | 23.2 hp (17.3 kW) |
| Drive System | Four-wheel drive (4WD) |
| Cabin | Two-post folding ROPS (Cab optional w/AC) |
🔧 Engine
Powered by a reliable 1.5L 3-cylinder diesel engine, the RTS23 offers fuel efficiency, durability, and low maintenance needs. Its 7.4-gallon (28.0 L) fuel tank supports long workdays without frequent refueling.
| Specification | Detail |
|---|---|
| Engine Type | Iseki Diesel |
| Displacement | 1.5 Liters |
| Cylinders | 3 |
| Horsepower | 23.2 hp |
| Fuel Tank Capacity | 7.4 gal (28.0 L) |
⚙️ Transmission
Depending on the work you do, the RTS23 offers two transmission choices:
-
A 12-speed gear setup for reliable manual shifting.
-
A 30-speed partial power shift for faster, smoother transitions and reduced operator fatigue.
| Transmission Type | Detail |
|---|---|
| Gear Option | 12-speed manual |
| Power Shift Option | 30-speed partial power shift |
| Steering | Power steering |
| Brakes | Wet disc brakes |
📏 Dimensions & Tires
Although compact, the Iseki RTS23 has a longer wheelbase than typical mini tractors, offering enhanced stability on slopes and in rough fields.
| Specification | Detail |
|---|---|
| Wheelbase | 59.1 in (150 cm) |
| Weight | 2161 to 2513 lbs (980–1140 kg) |
| Front Tires | 7–14 |
| Rear Tires | 9.5–24 |
🔌 PTO & Electrical System
The rear PTO supports a wide range of farming implements such as rotary tillers, sprayers, and seeders. Plus, its 12V system powers accessories reliably.
| Specification | Detail |
|---|---|
| Rear PTO Type | 540 RPM (1.375) |
| Engine PTO Speeds @2500 RPM | 523 / 819 / 1266 |
| Battery Voltage | 12V |
| Ground | Negative |
🔩 Rear Hitch System
The RTS23 features a JIS0 rear hitch, ensuring compatibility with commonly used Japanese implements. It’s perfect for precision farming tasks where size and maneuverability matter.
| Specification | Detail |
|---|---|
| Rear Hitch Type | JIS0 |
🌏 Why Choose the Iseki RTS23 from EVERY FARM TRACTOR?
We’ve helped farmers all over the world discover high-quality used Japanese tractors. Every RTS23 we export is carefully inspected, and we offer full support in English, Spanish, French, and more. If you’re considering a Used Kubota Tractor, the RTS23 is a strong alternative with Japanese craftsmanship, user-friendly controls, and a lower price point.
Additionally, with our global logistics network, you can receive your RTS23 in Africa, Southeast Asia, South America, Europe, or anywhere else—quickly and securely.
👉 Contact us now to get a quote or learn more about the Iseki RTS23 and other compact tractors!
