If you’re searching for a powerful and reliable tractor to support your farming operation, the Yanmar AF342 is a model worth serious consideration. With its robust engine, precise transmission, and superior build quality, this machine is engineered to perform across various terrains and tasks. Whether you are cultivating rice paddies or working on dry fields, the AF342 brings unmatched versatility.

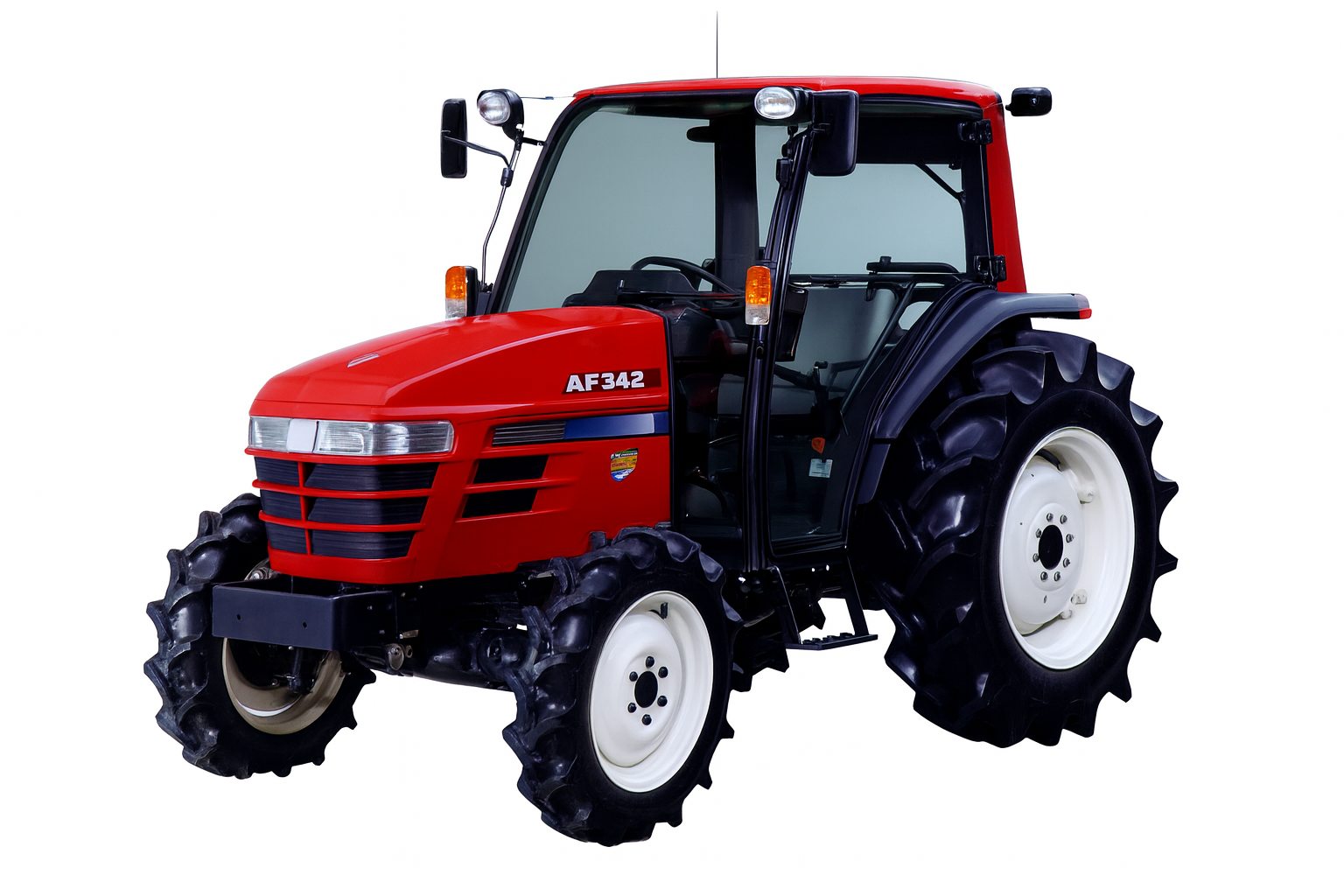

Overview of the Yanmar AF342
| Category | Details |
|---|---|
| Manufacturer | Yanmar |
| Model | AF342 |
| Production Years | 2002 – 2005 |
| Tractor Type | Compact Utility Tractor |
| Series | AF300 Series |
The AF342 was built with attention to detail and user comfort in mind. Farmers around the globe appreciate its fuel efficiency, long-term durability, and consistent performance in both heavy and light tasks.
Engine Specifications
| Specification | Detail |
|---|---|
| Engine Manufacturer | Yanmar |
| Engine Type | 4-cylinder diesel |
| Displacement | 2.2L |
| Horsepower | 42 hp / 31.3 kW |
| Fuel Capacity | 9.5 gal / 36.0 L |
The 2.2L diesel engine provides smooth power output with low vibration and excellent fuel economy. As a result, it helps reduce long-term operating costs.
Transmission & Drive System
| Specification | Detail |
|---|---|
| Transmission Type | 16-speed Power Shuttle |
| Drive | 4WD (Four-Wheel Drive) |
| Steering | Power Steering |
| Brakes | Wet Disc Brakes |
| ROPS | Two-post, with optional cab |
With its power shuttle transmission, the AF342 allows for smooth shifting and responsive control. Even in tight spaces, maneuverability is never compromised.
Dimensions and Tires
| Measurement | Value |
|---|---|
| Wheelbase | 72.8 inches / 184 cm |
| Weight | 3197 lbs / 1450 kg |
| Front Tire | 8-18 |
| Rear Tire | 13.6-26 |
These specifications ensure that the AF342 maintains stability and traction during field operations, even on uneven ground.
PTO and Lifting Capacity
| Feature | Specification |
|---|---|
| Rear Hitch Type | Category I |
| Control System | Position Control |
| Rear PTO Speeds | 556 / 787 / 994 / 1300 RPM |
Thanks to its four-speed PTO, the AF342 offers excellent compatibility with a wide range of agricultural implements, making it ideal for various farming needs.
Electrical System
| Feature | Detail |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
| Battery Capacity | 70 AH |
Reliable electrical support ensures uninterrupted operation in both hot and cold climates.
Why Choose the Yanmar AF342?
-
Exceptional reliability from one of Japan’s most trusted agricultural brands
-
Fuel-efficient performance reduces operational costs
-
Four-wheel drive and wet disc brakes ensure safe operation on varied terrains
-
Smooth handling thanks to power steering and easy-to-use transmission
-
Highly adaptable with multiple PTO speeds and hitch compatibility
Looking for a Used Yanmar AF342 Tractor?
EVERY FARM TRACTOR exports high-quality Japanese used tractors, including the Yanmar AF342, to over 100 countries. With extensive experience since 2006 and a global customer base, we are your trusted source for reliable agricultural machines.
