EVERY FARM TRACTOR: Delivering Japanese Quality Worldwide Since 2006
At EVERY FARM TRACTOR, we have exported high-quality used tractors and agricultural machinery from Japan to over 100 countries since 2006.

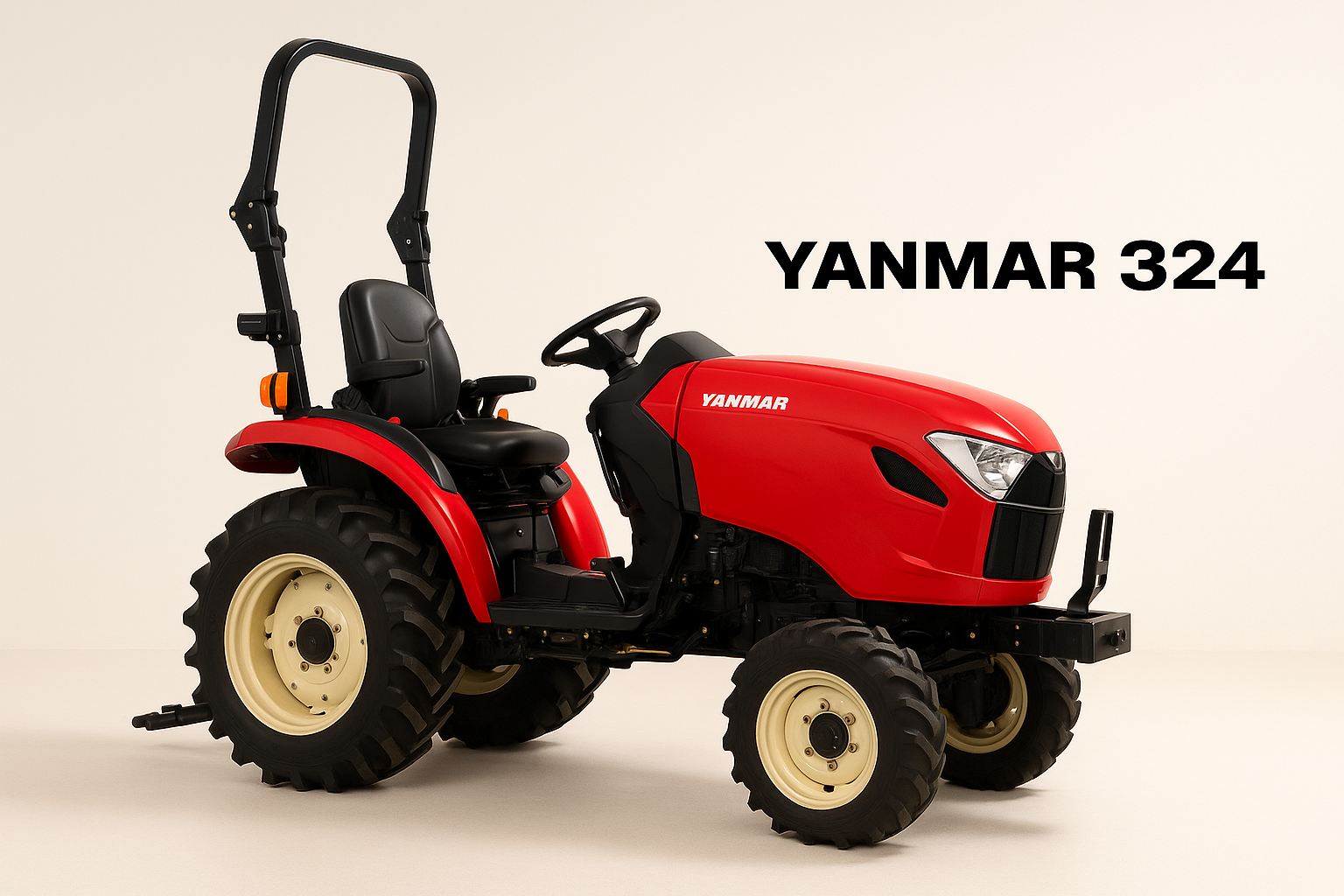

Among our most powerful sub-compact models is the Yanmar 324, a versatile machine that blends strength, durability, and ease of use in a compact package.
If you are searching for a Used Kubota Tractor, the Yanmar 324 offers comparable power and reliability—backed by the same Japanese craftsmanship.
Overview of the Yanmar 324
| Feature | Details |
|---|---|
| Model | Yanmar 324 |
| Series | SA Series |
| Production Years | 2014 – 2022 |
| Tractor Type | Sub-Compact Utility Tractor |
| Manufacturer | Yanmar Corporation (Japan) |
| Drive Type | Four-Wheel Drive (4WD) |
| Steering | Power Steering |
| Brakes | Wet Disc |
| ROPS | Two-post, Folding |
Compact enough for tight spaces, yet strong enough for heavy tasks, the Yanmar 324 is ideal for small farms, vineyards, and estates.
Engine Specifications
This model features a 1.3L 3-cylinder Yanmar diesel engine, providing power for both PTO and hydraulic tasks.
| Item | Specification |
|---|---|
| Engine Type | Yanmar 1.3L 3-cylinder diesel |
| Gross Horsepower | 23.9 hp (17.8 kW) |
| Net Horsepower | 21.7 hp (16.2 kW) |
| PTO Power (claimed) | 18.1 hp (13.5 kW) |
| Fuel Tank Capacity | 6 gal (22.7 L) |
Its robust engine makes the 324 capable of loader work, mowing, tilling, and more—without compromising fuel efficiency.
Transmission and PTO
The hydrostatic transmission ensures smooth operation, especially useful in precision work.
| Transmission Type | Hydrostatic |
|---|---|
| Rear PTO | Independent, 540 RPM (1.375″) |
| Mid PTO | Independent, 2000 RPM (1.0″) |
| Engine RPM | 554 (Rear) / 2057 (Mid) @ 3200 RPM |
| Clutch | Hydraulic |
Dual PTOs give the Yanmar 324 wide compatibility with modern implements and attachments.
Hydraulics and Hitch System
With a high hydraulic pressure rating, the Yanmar 324 can operate loaders, backhoes, and precision implements smoothly.
| Item | Specification |
|---|---|
| System Type | Open Center |
| Hydraulic Pressure | 2429 psi (167.5 bar) |
| Pump Flow | 4.3 gpm (16.3 lpm) |
| Steering Flow | 3.7 gpm (14.0 lpm) |
| Rear Hitch Type | Category I (Limited) |
| Lift Capacity at 24″ | 1209 lbs (548 kg) |
| Hitch Control | Position Control |
This hydraulic system is responsive and powerful, making the 324 ideal for multitasking operations.
Dimensions and Tires
| Item | Measurement |
|---|---|
| Wheelbase | 63 in (160 cm) |
| Weight | 1715 lbs (777 kg) |
Its wider wheelbase provides added stability, making it safer during loader work or uneven terrain navigation.
Electrical System
| Electrical Spec | Value |
|---|---|
| Ground | Negative |
| Battery Voltage | 12V |
| Cold Cranking Amps | 540 CCA |
Built to start reliably in various climates, the system supports additional accessories and lighting.
Attachments and Versatility
The Yanmar 324 is compatible with:
-
60” Mid-Mount Mower Deck
-
Front-End Loader
-
Rear Implements (Tiller, Sprayer, etc.)
This versatility makes it a favorite among users who want one tractor for many jobs.
Why Choose the Yanmar 324?
The Yanmar 324 is perfect for:
-
Property owners who need compact power
-
Small farms and vineyards requiring loader + mower functions
-
Export buyers seeking modern, high-performance tractors
-
Users who value durability, simplicity, and global parts support
With modern performance in a compact frame, it’s a great match for both domestic and export markets.
